iOS：探究视图控制器的转场动画
来源：cnblogs　　作者：菩提树下苦思　　时间：2019/11/11 8:47:49　　对本文有异议

一、介绍

在iOS开发中，转场动画的使用无处不见，不只是我们自己更多的使用UIViewblock动画实现一个转场动画，其实，在我们实现VC控制器跳转的时候都是转场动画的实现，例如标签栏控制器的切换、模态动画present和dismiss、导航控制器的push和pop。实现它们的转场动画，只需要实现它们的动画协议即可，说起来有点太笼统，不如看下面的图吧：



二、分析

对于上面的三种类型的控制器，系统都会为它们设置一个代理，通过这个代理方法去监测它们切换VC的过程，这个过程仅仅是出现和消失的过程，至于这个过程是什么过渡效果，这个代理是不管的。要想这个过程是有动画的，那么在这些过程中，也就是代理函数中，需要另外再返回一个实现动画的对象，这个对象必须遵循实现动画的协议，在这个协议中开发者可以重写自定义转场动画。下面会慢慢演示这三种类型控制器的自定义转场动画。

重写不可交互转场动画的核心协议内容：

  1. //重写动画协议
  2. @protocol UIViewControllerAnimatedTransitioning <NSObject>
  3.
  4. //动画执行时间
  5. - (NSTimeInterval)transitionDuration:(nullable id <UIViewControllerContextTransitioning>)transitionContext;
  7. //自定义动画效果
  8. - (void)animateTransition:(id <UIViewControllerContextTransitioning>)transitionContext;
  10. @end

重写可交互转场动画的核心协议内容：

  1. //重写动画协议
  2. @protocol UIViewControllerInteractiveTransitioning <NSObject>
  3.
  4. //自定义动画效果
  5. - (void)startInteractiveTransition:(id <UIViewControllerContextTransitioning>)transitionContext;
  7. @end

系统提供的一个百分比可交互转场动画核心类内容：

  1. //系统提供的百分比动画类，已经遵循了可交互协议
  2. @interface UIPercentDrivenInteractiveTransition : NSObject <UIViewControllerInteractiveTransitioning>
  3. - (void)pauseInteractiveTransition;
  4. - (void)updateInteractiveTransition:(CGFloat)percentComplete;
  5. - (void)cancelInteractiveTransition;
  6. - (void)finishInteractiveTransition;
  8. @end



三、转场动画View之间的切换



四、实现一个自定义的模态动画

1、概述

正如我们所知，系统为我们提供的模态动画默认是从底部present出，然后dismiss回到底部。 虽然说这个基本能够满足使用，但是如果我们还想使用其他形式的模态动画例如从顶部present出dismiss回到顶部，这个时候就需要对系统默认的转场动画进行自定义了。

2、详解

（1）要自定义模态转场动画，首先需要给被模态的控制器设置一个实现了UIViewControllerAnimatedTransitioning协议的代理，这些协议方法可以监测动画执行的过程，代理和协议如下：

  1. //代理
  2. @protocol UIViewControllerTransitioningDelegate;
  3. @interface UIViewController(UIViewControllerTransitioning)
  4. @property (nullable, nonatomic, weak) id <UIViewControllerTransitioningDelegate> transitioningDelegate API_AVAILABLE(ios(7.0));
  5. @end
  1. //协议
    @protocol     UIViewControllerTransitioningDelegate <NSObject>
  2. @optional
  3. //present时调用，返回一个实现了不可交互转场动画协议的代理
  4. - (nullable id <UIViewControllerAnimatedTransitioning>)animationControllerForPresentedController:(UIViewController *)presented presentingController:(UIViewController *)presenting sourceController:(UIViewController *)source;
  6. //dismiss时调用，返回一个实现了不可交互转场动画协议的代理
  7. - (nullable id <UIViewControllerAnimatedTransitioning>)animationControllerForDismissedController:(UIViewController *)dismissed;
  9. //presnt过程中交互时调用，返回一个实现了可交互的转场动画协议的代理
  10. - (nullable id <UIViewControllerInteractiveTransitioning>)interactionControllerForPresentation:(id <UIViewControllerAnimatedTransitioning>)animator;
  12. //dismiss过程中交互时调用，返回一个实现了可交互的转场动画协议的代理
  13. - (nullable id <UIViewControllerInteractiveTransitioning>)interactionControllerForDismissal:(id <UIViewControllerAnimatedTransitioning>)animator;
  15. //返回新的模态弹框控制器（这个是对模态风格进行自定义时调用，后面会说到）
  16. - (nullable UIPresentationController *)presentationControllerForPresentedViewController:(UIViewController *)presented presentingViewController:(nullable UIViewController *)presenting sourceViewController:(UIViewController *)source API_AVAILABLE(ios(8.0));
  17. @end

（2）然后在上面的协议方法中返回一个实现了UIViewControllerAnimatedTransitioning协议的代理，在这个代理的协议方法中可以真正重写转场动画了，协议如下：

  1. @protocol UIViewControllerAnimatedTransitioning <NSObject>
  2. //动画执行时间
  3. - (NSTimeInterval)transitionDuration:(nullable id <UIViewControllerContextTransitioning>)transitionContext;
  4. //自定义转场动画
  5. - (void)animateTransition:(id <UIViewControllerContextTransitioning>)transitionContext;
  6. @optional

（3）自定义转场动画实现如下【注意：Singleton单例类和UIView+Extesion分类需要自己去拷贝引入】

  • 设置UIViewControllerAnimatedTransitioning代理对象TransitionDelegate，监测动画执行过程，将其设置为单例
    1. #import <UIKit/UIKit.h>
    2. #import "Singleton.h"
    3. @interface TransitionDelegate : NSObject<UIViewControllerTransitioningDelegate>
    4. SingletonH(TransitionDelegate);
    5. @end
    1. #import "TransitionDelegate.h"
    2. #import "CustomAnimationTransition.h"
    3.
    4. @implementation TransitionDelegate
    5. SingletonM(TransitionDelegate);
    7. #pragma mark - <UIViewControllerTransitioningDelegate>
    8.
    9. //展示的动画
    10. - (id <UIViewControllerAnimatedTransitioning>)animationControllerForPresentedController:(UIViewController *)presented presentingController:(UIViewController *)presenting sourceController:(UIViewController *)source
    11. {
    12.     CustomAnimationTransition *animation = [[CustomAnimationTransition alloc]init];
    13.     animation.presented = YES;
    14.     return animation;
    15. }
    17. //关闭的动画
    18. - (id <UIViewControllerAnimatedTransitioning>)animationControllerForDismissedController:(UIViewController *)dismissed
    19. {
    20.     CustomAnimationTransition *animation = [[CustomAnimationTransition alloc]init];
    21.     animation.presented = NO;
    22.     return animation;
    23. }
    24. @end
  • 设置UIViewControllerAnimatedTransitioning代理对象CustomTransitionAnimationTransition，重写动画效果
    1. #import <UIKit/UIKit.h>
    2.
    3. @interface CustomAnimationTransition : NSObject<UIViewControllerAnimatedTransitioning>
    4. //判断是present还是dismiss, YES:present  NO:dismisss
    5. @property (assign,nonatomic)BOOL presented;
    6. @end
    1. //设置过渡动画（modal和dismiss的动画都需要在这里处理）
    2. - (void)animateTransition:(id <UIViewControllerContextTransitioning>)transitionContext
    3. {
    4.     // UITransitionContextToViewKey,
    5.     // UITransitionContextFromViewKey.
    6.
    7.     //出来的动画
    8.     if (self.presented) {
    9.
    10.         //获取并添加转场视图
    11.         UIView *toView = [transitionContext viewForKey:UITransitionContextToViewKey];
    12.         [transitionContext.containerView addSubview:toView];
    13.
    14.         //设置动画从上往下出来
    15.         toView.y = -toView.height;
    16.
    17.         [UIView animateWithDuration:duration animations:^{
    18.
    19.             toView.y = 0;
    20.
    21.         } completion:^(BOOL finished) {
    22.
    23.             //移除视图
    24.             BOOL cancle = [transitionContext transitionWasCancelled];
    25.             if (cancle) {
    26.                 [toView removeFromSuperview];
    27.             }
    28.
    29.             //动画完成后,视图上的事件才能处理
    30.             [transitionContext completeTransition:!cancle];
    31.         }];
    32.     }
    33.     //销毁的动画
    34.     else
    35.     {
    36.         //获取转场视图
    37.         UIView *fromView = [transitionContext viewForKey:UITransitionContextFromViewKey];
    38.
    39.         [UIView animateWithDuration:duration animations:^{
    40.
    41.             fromView.y = -fromView.height;
    43.         } completion:^(BOOL finished) {
    44.
    45.             //移除视图
    46.             BOOL cancle = [transitionContext transitionWasCancelled];
    47.             if (!cancle) {
    48.                 [fromView removeFromSuperview];
    49.             }
    50.
    51.             //动画完成后,视图上的事件才能处理
    52.             [transitionContext completeTransition:!cancle];
    53.         }];
    54.     }
    55. }

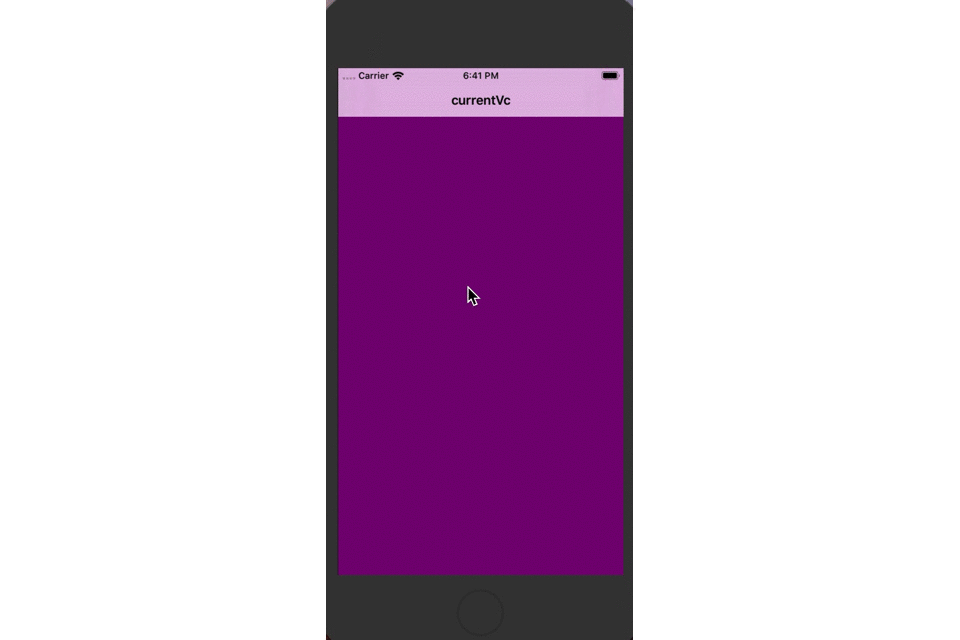

  • 开始执行，结果如gif图
    1. //present
    2. UINavigationController *nav = [[UINavigationController alloc] initWithRootViewController:[[SecondViewController alloc] init]];
    3. nav.transitioningDelegate = [TransitionDelegate sharedTransitionDelegate];//自定义转场动画
    4. nav.modalPresentationStyle = UIModalPresentationFullScreen;
      [self presentViewController:nav animated:YES completion:nil];

 （4）我们已经实现了一个简单的自定义模态不可交互的转场动画，其实，在模态控制器的时候，我们还可以自定义可交互的转场动画以及设置自定义的模态风格。可交互的转场动画一会儿再讨论，先来讨论一下模态风格，系统在iOS13之前默认都是满屏模式的UIModalPresentationFullScreen，但是iOS13之后，默认是UIModalPresentationPageSheet。系统提供的模态风格如下：

  1. //模态风格枚举
  2. typedef NS_ENUM(NSInteger, UIModalPresentationStyle) {
  3.     UIModalPresentationFullScreen = 0,
  4.     UIModalPresentationPageSheet ,
  5.     UIModalPresentationFormSheet ,
  6.     UIModalPresentationCurrentContext ,
  7.     UIModalPresentationCustom , //自定义
  8.     UIModalPresentationOverFullScreen ,
  9.     UIModalPresentationOverCurrentContext ),
  10.     UIModalPresentationPopover ,
  11.     UIModalPresentationBlurOverFullScreen ,
  12.     UIModalPresentationNone,
  13.     UIModalPresentationAutomatic ,
  14. };

 （5）从上面的枚举可以看到，系统是支持我们实现自己的风格的，也就是自定义。在实现自定义之前，一定得知道UIPresentationController这个类，这个是弹出框控件，模态的控制器都是由它进行管理，主要代码如下：

  1. //重写此方法可以在弹框即将显示时执行所需要的操作
  2. - (void)presentationTransitionWillBegin;
  3. //重写此方法可以在弹框显示完毕时执行所需要的操作
  4. - (void)presentationTransitionDidEnd:(BOOL)completed;
  5. //重写此方法可以在弹框即将消失时执行所需要的操作
  6. - (void)dismissalTransitionWillBegin;
  7. //重写此方法可以在弹框消失之后执行所需要的操作
  8. - (void)dismissalTransitionDidEnd:(BOOL)completed;
  9. //重写决定了弹出框的frame
  10. - (CGRect)frameOfPresentedViewInContainerView;
  11. //重写对containerView进行布局
  12. - (void)containerViewWillLayoutSubviews;
  13. - (void)containerViewDidLayoutSubviews;
  14. //初始化方法
  15. - (instancetype)initWithPresentedViewController:(UIViewController *)presentedViewController presentingViewController:(UIViewController *)presentingViewController;

（6）额外再提一个知识点，因为一会儿在自定义模态风格时会涉及到。在本文开篇结构图中介绍了创建的转场动画都是在转场动画上下文UIViewControllerContextTransitioning协议中完成的，那么这个转场动画的执行是谁管理呢？看结构图如下，没错，是由UIViewControllerTransitionCoordinator这个代理协调器在协调器上下文中完成的，系统给UIViewController提供了一个分类，这个分类持有这个代理协调器，通过这个代理协调器可以拿到执行转场动画的方法。最终，我们可以自己添加一些操作与转场动画同步执行。



UIViewControllerContextTransitioning协议核心内容

  1. @protocol UIViewControllerTransitionCoordinatorContext <NSObject>
  2. // 执行的属性
  3. @property(nonatomic, readonly, getter=isAnimated) BOOL animated;
  4. @property(nonatomic, readonly) UIModalPresentationStyle presentationStyle;
  5. @property(nonatomic, readonly) NSTimeInterval transitionDuration;
  6. @property(nonatomic, readonly) UIView *containerView;
  7. @property(nonatomic, readonly) CGAffineTransform targetTransform
  9. // 参与控制器
  10. // UITransitionContextToViewControllerKey、UITransitionContextFromViewControllerKey
  11. - (nullable __kindof UIViewController *)viewControllerForKey:(UITransitionContextViewControllerKey)key;
  13. // 参与的视图
  14. // UITransitionContextToViewKey、UITransitionContextFromViewKey
  15. - (nullable __kindof UIView *)viewForKey:(UITransitionContextViewKey)key API_AVAILABLE(ios(8.0));
  16. @end

UIViewControllerTransitionCoordinator协议核心内容

  1. // 与动画控制器中的转场动画同步，执行其他动画
  2. - (BOOL)animateAlongsideTransition:(void (^ __nullable)(id <UIViewControllerTransitionCoordinatorContext>context))animation
  3.                         completion:(void (^ __nullable)(id <UIViewControllerTransitionCoordinatorContext>context))completion;
  4.
  5. // 与动画控制器中的转场动画同步，在指定的视图内执行动画
  6. - (BOOL)animateAlongsideTransitionInView:(nullable UIView *)view
  7.                                animation:(void (^ __nullable)(id <UIViewControllerTransitionCoordinatorContext>context))animation
  8.                               completion:(void (^ __nullable)(id <UIViewControllerTransitionCoordinatorContext>context))completion;

UIViewController(UIViewControllerTransitionCoordinator) 分类核心内容

  1. //持有转场动画执行协调器
  2. @interface UIViewController(UIViewControllerTransitionCoordinator)
  3. @property(nonatomic, readonly, nullable) id <UIViewControllerTransitionCoordinator> transitionCoordinator;
  4. @end

（7）自定义模态风格实现如下【注意：Singleton单例类和UIView+Extesion分类需要自己去拷贝引入】

  • 设置UIViewControllerAnimatedTransitioning代理对象TransitionDelegate，监测动画执行过程并返回模态风格，将其设置为单例
    1. #import <UIKit/UIKit.h>
    2. #import "Singleton.h"
    3.
    4. @interface TransitionDelegate : NSObject<UIViewControllerTransitioningDelegate>
    5. SingletonH(TransitionDelegate);
    6. @end
    1. #import "TransitionDelegate.h"
    2. #import "CustomPresentationController.h"
    3. #import "CustomAnimationTransition.h"
    4.
    5. @implementation TransitionDelegate
    6. SingletonM(TransitionDelegate);
    8. #pragma mark - <UIViewControllerTransitioningDelegate>
    9. //返回模态风格
    10. -(UIPresentationController *)presentationControllerForPresentedViewController:(UIViewController *)presented presentingViewController:(UIViewController *)presenting sourceViewController:(UIViewController *)source
    11. {
    12.     return [[CustomPresentationController alloc] initWithPresentedViewController:presented presentingViewController:presenting];
    13. }
    15. //展示的动画
    16. - (id <UIViewControllerAnimatedTransitioning>)animationControllerForPresentedController:(UIViewController *)presented presentingController:(UIViewController *)presenting sourceController:(UIViewController *)source
    17. {
    18.     CustomAnimationTransition *animation = [[CustomAnimationTransition alloc]init];
    19.     animation.presented = YES;
    20.     return animation;
    21. }
    23. //关闭的动画
    24. - (id <UIViewControllerAnimatedTransitioning>)animationControllerForDismissedController:(UIViewController *)dismissed
    25. {
    26.     CustomAnimationTransition *animation = [[CustomAnimationTransition alloc]init];
    27.     animation.presented = NO;
    28.     return animation;
    29. }
    30. @end
  • 设置UIViewControllerAnimatedTransitioning代理对象CustomTransitionAnimationTransition，重写动画效果
    1. #import <UIKit/UIKit.h>
    2.
    3. @interface CustomAnimationTransition : NSObject<UIViewControllerAnimatedTransitioning>
    4. //判断是present还是dismiss, YES:present  NO:dismisss
    5. @property (assign,nonatomic)BOOL presented;
    6. @end
    1. #import "CustomAnimationTransition.h"
    2. #import "UIView+Extension.h"
    3.
    4. const CGFloat duration = 0.5f;
    6. @implementation CustomAnimationTransition
    8. #pragma mark -<UIViewControllerAnimatedTransitioning>
    9. //动画时间
    10. - (NSTimeInterval)transitionDuration:(id <UIViewControllerContextTransitioning>)transitionContext
    11. {
    12.     return duration;
    13. }
    15. //设置过渡动画（modal和dismiss的动画都需要在这里处理）
    16. - (void)animateTransition:(id <UIViewControllerContextTransitioning>)transitionContext
    17. {
    18.     // UITransitionContextToViewKey,
    19.     // UITransitionContextFromViewKey.
    20.
      　　 //发现此处并没有添加toView到containerView中以及从containerView中移除toView，与上面的有区别。
          //我把添加和移除toView的操作放到了下面的自定义的模态风格类中完成的

          //      出来的动画
    21.     if (self.presented) {
    22.          UIView *toView = [transitionContext viewForKey:UITransitionContextToViewKey];
    23.
    24.         //设置动画从上往下出来
    25.         toView.y = -toView.height;
    26.
    27.         [UIView animateWithDuration:duration animations:^{
    28.
    29.             toView.y = 0;
    30.
    31.         } completion:^(BOOL finished) {
    32.
    33.             //动画完成后,视图上的事件才能处理
    34.             [transitionContext completeTransition:YES];
    35.         }];
    36.     }
    37.     //销毁的动画
    38.     else
    39.     {
    40.         [UIView animateWithDuration:duration animations:^{
    41.
    42.             UIView *fromView = [transitionContext viewForKey:UITransitionContextFromViewKey];
    43.
    44.             fromView.y = -fromView.height;
    45.
    46.         } completion:^(BOOL finished) {
    47.
    48.             //动画完成后,视图上的事件才能处理
    49.             [transitionContext completeTransition:YES];
    50.         }];
    51.     }
    52. }
  • 设置自定义的模态风格类CustomPresenttationController
    1. #import "CustomPresentationController.h"
    2.
    3. @implementation CustomPresentationController
    5. //可以改变被模态的控制器视图的尺寸
    6. - (CGRect)frameOfPresentedViewInContainerView
    7. {
      　　 //CGRectInset: 在containerView的frame基础上，将width减小100，将height减小200
    8.     //containerView是容纳presentedView的一个容器
    9.     return CGRectInset(self.containerView.bounds, 50, 100);
    10. }
    12. //将上面重置的frame完成布局
    13. - (void)containerViewDidLayoutSubviews {
    14.     self.presentedView.frame = self.frameOfPresentedViewInContainerView;
    15.     [super containerViewDidLayoutSubviews];
    16. }
    18. //过渡即将展示时的处理
    19. //这个过程可以改变视图属性、或者添加视图等
    20. - (void)presentationTransitionWillBegin
    21. {
    22.     self.presentedView.frame = self.containerView.frame;
    23.     [self.containerView addSubview:self.presentedView];
    24. }
    27. //过渡展示完成
    28. //做清理工作
    29. - (void)presentationTransitionDidEnd:(BOOL)completed
    30. {
    31.      if (!completed) {
    32.         [self.presentedView removeFromSuperview];
    33.      }
    34. }
    36. //过渡即将消失时的处理
    37. //这个过程可以改变视图属性等
    38. - (void)dismissalTransitionWillBegin
    39. {
    40.     //例如改变透明度，与转场控制器中的转场动画同步执行
    41.     [self.presentingViewController.transitionCoordinator animateAlongsideTransition:^(id<UIViewControllerTransitionCoordinatorContext>  _Nonnull context) {
    42.
    43.         self.presentedView.alpha = 0.f;
    44.
    45.     } completion:nil];
    46. }
    48. //过渡消失完成
    49. //做清理工作
    50. - (void)dismissalTransitionDidEnd:(BOOL)completed
    51. {
    52.     if (completed) {
    53.         [self.presentedView removeFromSuperview];
    54.     }
    55. }
    56. @end

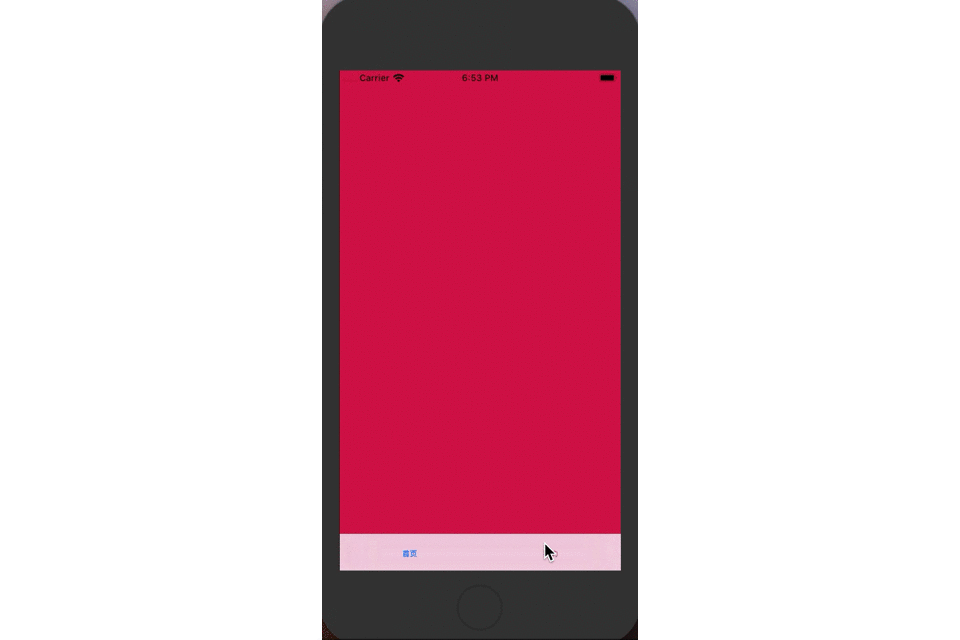

  • 开始执行，结果如gif图
    1. //present
    2. UINavigationController *nav = [[UINavigationController alloc] initWithRootViewController:[[SecondViewController alloc] init]];
    3. nav.transitioningDelegate = [TransitionDelegate sharedTransitionDelegate];//自定义转场动画
    4. nav.modalPresentationStyle = UIModalPresentationCustom; //自定义模态风格
    5. [self presentViewController:nav animated:YES completion:nil];

 （8）自定义模态转场动画和自定义模态风格我们都实现完了，但是上面的动画过程中都是不可交互的，那么要想实现可交互的动画该怎么做呢？如上面所说的，在dismiss时返回一个实现了UIViewControllerInteractiveTransitioning协议的代理或者直接是原生类UIPercentDrivenInteractiveTransition对象。其中，UIPercentDrivenInteractiveTransition是系统封装好了百分比驱动，用起来很简单，那么真正的实现原理还是我们去实现一下。下面咱们来实现导航模式的交互效果，如下：

  • TransitioningDelegate
    1. #import <UIKit/UIKit.h>
    2. #import "Singleton.h"

      @interface TransitioningDelegate : NSObject<UIViewControllerTransitioningDelegate>
    3. SingletonH(TransitioningDelegate);
    4. @end
    1. #import "TransitioningDelegate.h"
    2. #import "CustomAnimationTransition.h"
    3. #import "CustomInteractiveTransition.h"
    4.
    5. @implementation TransitioningDelegate
    6. SingletonM(TransitioningDelegate);
    8. #pragma mark - UIViewControllerTransitioningDelegate
    9.
    10. //present
    11. - (nullable id <UIViewControllerAnimatedTransitioning>)animationControllerForPresentedController:(UIViewController *)presented presentingController:(UIViewController *)presenting sourceController:(UIViewController *)source {
    12.
    13.      //这里还是采用自定义的转场动画方式进行present，使其present时从屏幕右侧滑入
           CustomAnimationTransition       *animation = [[CustomAnimationTransition alloc]init];
    14.      animation.presented = YES;
    15.      return animation;
    16. }
    18. //dismiss,必须重写
    19. - (nullable id <UIViewControllerAnimatedTransitioning>)animationControllerForDismissedController:(UIViewController *)dismissed {
    20.     //这里采用自定义的转场动画覆盖系统的dismiss效果，在dismiss时，由于自定义了交互动画，所以系统自己的dismiss动画不会执行
          CustomAnimationTransition       *animation = [[CustomAnimationTransition alloc] init];
    21.     animation.presented = NO;
    22.     return animation;
    23. }
    25. //将要dismiss时的交互行为，必须重写
    26. - (nullable id <UIViewControllerInteractiveTransitioning>)interactionControllerForDismissal:(id <UIViewControllerAnimatedTransitioning>)animator {
    27.
    28.     CustomInteractiveTransition *animation = [[CustomInteractiveTransition alloc] init];
    29.     return animation;
    30. }
    32. @end
  • CustomAnimationTransition
    1. #import <UIKit/UIKit.h>
    2.
    3. @interface CustomAnimationTransition : NSObject<UIViewControllerAnimatedTransitioning>
    4. //判断是present还是dismiss, YES:present  NO:dismisss
    5. @property (assign,nonatomic)BOOL presented;
    6. @end
    1. #import "CustomAnimationTransition.h"
    2. #import "UIView+Extension.h"
    3.
    4. const CGFloat duration = 0.5f;
    6. @implementation CustomAnimationTransition
    8. #pragma mark -<UIViewControllerAnimatedTransitioning>
    9. //动画时间
    10. - (NSTimeInterval)transitionDuration:(id <UIViewControllerContextTransitioning>)transitionContext
    11. {
    12.     return duration;
    13. }
    15. //设置过渡动画（modal和dismiss的动画都需要在这里处理）
    16. - (void)animateTransition:(id <UIViewControllerContextTransitioning>)transitionContext
    17. {
    18.     // UITransitionContextToViewKey,
    19.     // UITransitionContextFromViewKey.
    20.
    21.     //出来的动画
    22.     if (self.presented) {
    23.
    24.         //获取并添加转场视图
    25.         UIView *toView = [transitionContext viewForKey:UITransitionContextToViewKey];
    26.         [transitionContext.containerView addSubview:toView];
    27.
    28.         //设置动画从右往左出来
    29.         toView.x = toView.width;
    31.         [UIView animateWithDuration:duration animations:^{
    33.             toView.x = 0;
    35.         } completion:^(BOOL finished) {
    36.
    37.             //移除视图
    38.             BOOL cancle = [transitionContext transitionWasCancelled];
    39.             if (cancle) {
    40.                 [toView removeFromSuperview];
    41.             }
    42.
    43.             //动画完成后,视图上的事件才能处理
    44.             [transitionContext completeTransition:!cancle];
    45.         }];
    46.     }
    47.     //销毁的动画
    48.     else
    49.     {
    50.         //不做处理，而是交给自定义的交互动画去完成
    51.     }
    52. }
    53. @end
  • CustomInteractiveTransition
    1. #import <UIKit/UIKit.h>
    2. #import "Singleton.h"
    3.
    4. @interface CustomInteractiveTransition : NSObject<UIViewControllerInteractiveTransitioning>
    5. SingletonH(CustomInteractiveTransition); //采用单例的方式主要是为了保存交互上下文
    7. //动画进度更新
    8. -(void)updateAnimationProgress:(CGFloat)progress;
    10. //动画完成
    11. -(void)finish;
    13. //动画取消
    14. -(void)cancel;
    16. @end
    1. #import "CustomInteractiveTransition.h"
    2. #import "UIView+Extension.h"
    3.
    4. @interface CustomInteractiveTransition ()
    5. @property (nonatomic, strong) id<UIViewControllerContextTransitioning> context;
    6. @end
    7.
    8. @implementation CustomInteractiveTransition
    9. SingletonM(CustomInteractiveTransition);
    11. #pragma mark - UIViewControllerInteractiveTransitioning
    12.
    13. //开始交互时调用
    14. - (void)startInteractiveTransition:(id <UIViewControllerContextTransitioning>)transitionContext {
    15.
    16.     //保存上下文
    17.     self.context = transitionContext;
    18.
    19.     //更改视图层级
    20.     UIView *toView = [transitionContext viewForKey:UITransitionContextToViewKey];
    21.     UIView *fromView = [transitionContext viewForKey:UITransitionContextFromViewKey];
    22.     [transitionContext.containerView insertSubview:toView belowSubview:fromView];
    23. }
    26. //动画进度更新
    27. -(void)updateAnimationProgress:(CGFloat)progress {
    28.
    29.     UIView *fromView = [self.context viewForKey:UITransitionContextFromViewKey];
    30.     fromView.x = self.context.containerView.width * progress;
    31.
    32. }
    34. //动画完成
    35. -(void)finish {
    36.
          UIView *fromView = [self.context viewForKey:UITransitionContextFromViewKey];
    37.     [UIView animateWithDuration:0.2 animations:^{
    38.
    39.         fromView.x += self.context.containerView.width;
    40.
    41.     } completion:^(BOOL finished) {
              [fromView removeFromSuperView];
              [self.context completeTransition:finished];
    42.     }];
    43. }
    45. //动画取消
    46. -(void)cancel {
    47.
          UIView *fromView = [self.context viewForKey:UITransitionContextFromViewKey];
    48.     [UIView animateWithDuration:0.2 animations:^{
    50.         fromView.x = 0;
    51.
    52.     } completion:^(BOOL finished) {
    53.        [fromView removeFromSuperView];
             [self.context cancelInteractiveTransition];
    54.     }];
    55. }
    56. @end
  • 在被模态的控制器添加拖拽手势
    1. #import "SecondViewController.h"
    2. #import "CustomInteractiveTransition.h"
    3.
    4. @interface SecondViewController ()
    6. @end
    7.
    8. @implementation SecondViewController
    10. - (void)viewDidLoad {
    11.     [super viewDidLoad];
    12.
    13.     self.title = @"secondVc";
    14.     self.view.backgroundColor = [UIColor redColor];
    15.
    16.     [self.view addGestureRecognizer:[[UIPanGestureRecognizer alloc] initWithTarget:self action:@selector(pan:)]];
    17. }
    19. -(void)pan:(UIPanGestureRecognizer *)pan {
    20.
    21.     CGPoint translatedPoint = [pan translationInView:self.view];
    22.     CGFloat progress = translatedPoint.x / [UIScreen mainScreen].bounds.size.width;
    23.     if (progress < 0) {
    24.         return;
    25.     }
    26.     //拖拽的距离进度比
    27.     progress = fabs(progress);
    28.     CustomInteractiveTransition *transition = [[CustomInteractiveTransition alloc] init];
    29.     switch (pan.state) {
    30.         case UIGestureRecognizerStateBegan:
    31.             [self dismissViewControllerAnimated:YES completion:nil];
    32.             break;
    33.         case UIGestureRecognizerStateChanged:
    34.             [transition updateAnimationProgress:progress];
    35.             break;
    36.         case UIGestureRecognizerStateEnded:
    37.         {
    38.             if (progress > 0.5) {
    39.                 [transition finish];
    40.             }else{
    41.                 [transition cancel];
    42.             }
    43.             break;
    44.         }
    45.         default:
    46.             break;
    47.     }
    48. }
    49. @end

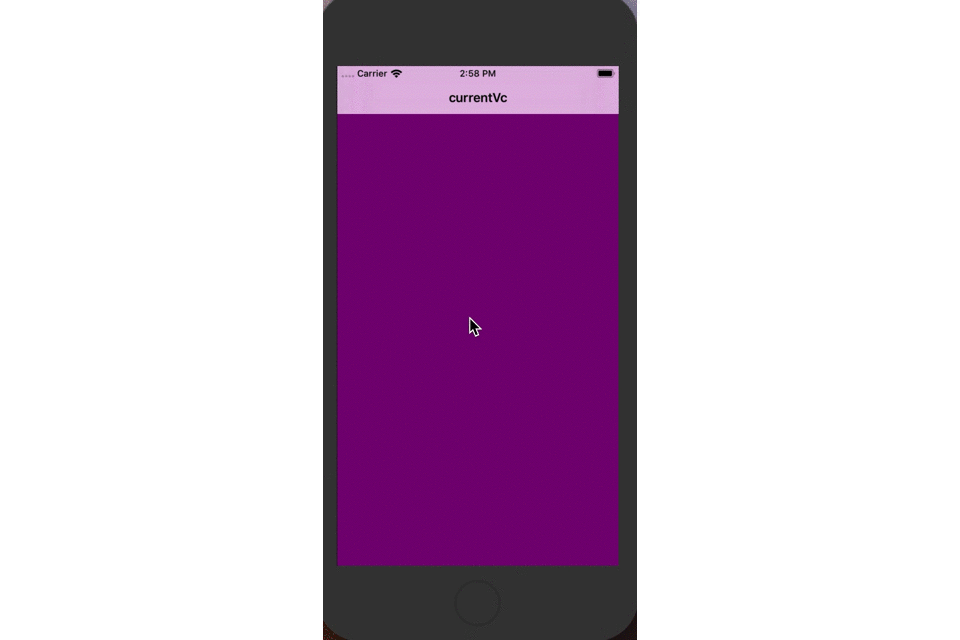

  • 开始执行，结果如gif图
    1. UINavigationController *nav = [[UINavigationController alloc] initWithRootViewController:[[SecondViewController alloc] init]];
    2. nav.transitioningDelegate = [TransitioningDelegate sharedTransitioningDelegate];//自定义可交互转场动画
    3. nav.modalPresentationStyle = UIModalPresentationFullScreen; //系统模态风格
    4. [self presentViewController:nav animated:YES completion:nil];



五、实现一个自定义的导航动画

1、重写导航控制器的协议，返回自定义的导航转场动画，动画实现的方式和modal思想一致，重写的核心协议如下：

  1. //重写导航控制器协议
  2. @protocol UINavigationControllerDelegate <NSObject>
  3. @optional
  4. ................
  6. //返回一个实现了自定义交互动画的对象
  7. - (nullable id <UIViewControllerInteractiveTransitioning>)navigationController:(UINavigationController *)navigationController
  8.                           interactionControllerForAnimationController:(id <UIViewControllerAnimatedTransitioning>) animationController;
  11. //返回一个实现了普通动画的对象
  12. - (nullable id <UIViewControllerAnimatedTransitioning>)navigationController:(UINavigationController *)navigationController
  13.                                    animationControllerForOperation:(UINavigationControllerOperation)operation
  14.                                                 fromViewController:(UIViewController *)fromVC
  15.                                                   toViewController:(UIViewController *)toVC;
  16. @end

2、 现在就来自定义一个导航转场动画，步骤如下：

  • 创建一个CustomNavigationTransition类，实现导航控制器的协议
    1. #import <UIKit/UIKit.h>
    2. #import "Singleton.h"
    4. NS_ASSUME_NONNULL_BEGIN
    6. @interface CustomNavigationTransition : NSObject<UINavigationControllerDelegate>
    7. SingletonH(CustomNavigationTransition);
    8. @end
    10. NS_ASSUME_NONNULL_END
    1. #import "CustomNavigationTransition.h"
    2. #import "CustomNavigationAnimation.h"
    3.
    4. @implementation CustomNavigationTransition
    5. SingletonM(CustomNavigationTransition);
    7. #pragma mark - UINavigationControllerDelegate
    8.
    9. //返回一个实现了普通动画的对象
    10. - (nullable id <UIViewControllerAnimatedTransitioning>)navigationController:(UINavigationController *)navigationController
    11.                                    animationControllerForOperation:(UINavigationControllerOperation)operation
    12.                                                 fromViewController:(UIViewController *)fromVC
    13.                                                            toViewController:(UIViewController *)toVC {
    14.
    15.     CustomNavigationAnimation *animation = [[CustomNavigationAnimation alloc] init];
    16.     animation.operation = operation;
    17.     return animation;
    18. }
    20. @end
  • 自定义一个CustomNavigationAnimation类，实现动画协议，重写动画效果
    1. #import <UIKit/UIKit.h>
    3. NS_ASSUME_NONNULL_BEGIN
    5. @interface CustomNavigationAnimation : NSObject<UIViewControllerAnimatedTransitioning>
    6. @property (nonatomic, assign) UINavigationControllerOperation operation;
    7. @end
    9. NS_ASSUME_NONNULL_END
    1. #import "CustomNavigationAnimation.h"
    2. #import "UIView+Extension.h"
    3.
    4. const CGFloat _duration = 0.5f;
    6. @implementation CustomNavigationAnimation
    8. #pragma mark -<UIViewControllerAnimatedTransitioning>
    9. //动画时间
    10. - (NSTimeInterval)transitionDuration:(id <UIViewControllerContextTransitioning>)transitionContext
    11. {
    12.     return _duration;
    13. }
    15. //设置过渡动画（modal和dismiss的动画都需要在这里处理）
    16. - (void)animateTransition:(id <UIViewControllerContextTransitioning>)transitionContext
    17. {
    18.     // UITransitionContextToViewKey,
    19.     // UITransitionContextFromViewKey.
    20.
    21.     //push
    22.     if (self.operation == UINavigationControllerOperationPush) {
    23.
    24.         //转场视图
    25.         UIView *toView = [transitionContext viewForKey:UITransitionContextToViewKey];
    26.         [transitionContext.containerView addSubview:toView];
    27.
    28.         //设置动画从右上push进来
    29.         toView.x = toView.width;
    30.         toView.y = -toView.height;
    31.
    32.         [UIView animateWithDuration:_duration animations:^{
    34.             toView.x = 0;
    35.             toView.y = 0;
    36.
    37.         } completion:^(BOOL finished) {
    38.
    39.             //移除视图
    40.             BOOL cancle = [transitionContext transitionWasCancelled];
    41.             if (cancle) {
    42.                 [toView removeFromSuperview];
    43.             }
    44.
    45.             //动画完成后,视图上的事件才能处理
    46.             [transitionContext completeTransition:!cancle];
    47.         }];
    48.     }
    49.     //pop
    50.     else if(self.operation == UINavigationControllerOperationPop)
    51.     {
    52.         //转场视图，更改层级关系
    53.         UIView *fromView = [transitionContext viewForKey:UITransitionContextFromViewKey];
    54.         UIView *toView = [transitionContext viewForKey:UITransitionContextToViewKey];
    55.         [transitionContext.containerView insertSubview:toView belowSubview:fromView];
    57.         [UIView animateWithDuration:_duration animations:^{
    58.
    59.             //pop返回右上
    60.             fromView.x = fromView.width;
    61.             fromView.y = -fromView.height;
    62.
    63.         } completion:^(BOOL finished) {
    64.
    65.             //移除视图
    66.             BOOL cancle = [transitionContext transitionWasCancelled];
    67.             if (!cancle) {
    68.                 [fromView removeFromSuperview];
    69.             }
    70.
    71.             //动画完成后,视图上的事件才能处理
    72.             [transitionContext completeTransition:!cancle];
    73.         }];
    74.     }
    75. }
    76. @end
  • 开始执行，结果如gif图
    1. //push
    2. ThirdViewController *vc = [[ThirdViewController alloc] init];
    3. self.navigationController.delegate = [CustomNavigationTransition sharedCustomNavigationTransition];
    4. [self.navigationController pushViewController:vc animated:YES];


六、实现一个自定义的标签栏切换动画

1、重写标签栏控制器的协议，返回自定义的标签栏切换转场动画，动画实现的方式和modal思想一致，重写的核心协议如下：

  1. //重写标签栏协议
  2. @protocol UITabBarControllerDelegate <NSObject>
  3. @optional
  4. ......................
  6. //返回一个实现了可交互的标签栏转场动画对象
  7. - (nullable id <UIViewControllerInteractiveTransitioning>)tabBarController:(UITabBarController *)tabBarController
  8.                       interactionControllerForAnimationController: (id <UIViewControllerAnimatedTransitioning>)animationController;
  10. //返回一个实现了普通的标签栏转场动画对象
  11. - (nullable id <UIViewControllerAnimatedTransitioning>)tabBarController:(UITabBarController *)tabBarController
  12.             animationControllerForTransitionFromViewController:(UIViewController *)fromVC
  13.                                               toViewController:(UIViewController *)toVC;
  15. @end

2、 现在就来自定义一个标签转场动画，步骤如下：

  • 创建一个CustomTabBarViewController类，设置代理CustomTabbarTransition实例
    1. //注意：我使用StoryBoard搭建的界面
    2. #import <UIKit/UIKit.h>
    3. NS_ASSUME_NONNULL_BEGIN
    4. @interface CustomTabBarViewController : UITabBarController
    5. @end
    6. NS_ASSUME_NONNULL_END
    1. #import "CustomTabBarViewController.h"
    2. #import "CustomTabbarTransition.h"
    3.
    4. @interface CustomTabBarViewController ()
    6. @end
    7.
    8. @implementation CustomTabBarViewController
    10. -(instancetype)initWithCoder:(NSCoder *)coder {
    11.     if (self = [super initWithCoder:coder]) {
    12.         //设置代理
    13.         self.delegate = [CustomTabbarTransition sharedCustomTabbarTransition];
    14.     }
    15.     return self;
    16. }
    18. - (void)viewDidLoad {
    19.     [super viewDidLoad];
    20.
    21. }
    22. @end
  • 创建一个CustomTabbarTransition类，实现标签栏控制器的协议
    1. #import <UIKit/UIKit.h>
    2. #import "Singleton.h"
    4. NS_ASSUME_NONNULL_BEGIN
    6. @interface CustomTabbarTransition : NSObject<UITabBarControllerDelegate>
    7. SingletonH(CustomTabbarTransition);
    8. @end
    10. NS_ASSUME_NONNULL_END
    1. #import "CustomTabbarTransition.h"
    2. #import "CustomTabbarAnimation.h"
    3.
    4. @implementation CustomTabbarTransition
    5. SingletonM(CustomTabbarTransition);
    7. #pragma mark - UITabBarControllerDelegate
    8. //返回一个实现了普通动画的对象
    9. - (nullable id <UIViewControllerAnimatedTransitioning>)tabBarController:(UITabBarController *)tabBarController
    10. animationControllerForTransitionFromViewController:(UIViewController *)fromVC
    11.                                                        toViewController:(UIViewController *)toVC {
    12.
    13.     CustomTabbarAnimation *animation = [[CustomTabbarAnimation alloc] init];
    14.     return animation;
    15. }
    17. @end
  • 创建一个CustomTabbarAnimation类，自定义标签切换动画
    1. #import <UIKit/UIKit.h>
    3. NS_ASSUME_NONNULL_BEGIN
    5. @interface CustomTabbarAnimation : NSObject<UIViewControllerAnimatedTransitioning>
    6.
    7. @end
    9. NS_ASSUME_NONNULL_END
    1. #import "CustomTabbarAnimation.h"
    2. #import "UIView+Extension.h"
    3.
    4. const CGFloat _Duration = 0.5f;
    6. @implementation CustomTabbarAnimation
    8. #pragma mark -<UIViewControllerAnimatedTransitioning>
    9. //动画时间
    10. - (NSTimeInterval)transitionDuration:(id <UIViewControllerContextTransitioning>)transitionContext
    11. {
    12.     return _Duration;
    13. }
    15. //设置过渡动画（modal和dismiss的动画都需要在这里处理）
    16. - (void)animateTransition:(id <UIViewControllerContextTransitioning>)transitionContext
    17. {
    18.     // UITransitionContextToViewKey,
    19.     // UITransitionContextFromViewKey.
    20.
    21.     //转场视图
    22.     UIView *toView = [transitionContext viewForKey:UITransitionContextToViewKey];
    23.     UIView *fromView = [transitionContext viewForKey:UITransitionContextFromViewKey];
    24.     [transitionContext.containerView addSubview:toView];
    25.     [transitionContext.containerView sendSubviewToBack:toView];
    26.
    27.     //尺寸变化,从原尺寸缩小到点
    28.     CGRect finalFrame = CGRectInset(transitionContext.containerView.frame, transitionContext.containerView.frame.size.width/2, transitionContext.containerView.frame.size.height/2);
    29.
    30.     [UIView animateWithDuration:_Duration animations:^{
    31.
    32.                 fromView.frame = finalFrame;
    33.
    34.            } completion:^(BOOL finished) {
    35.
    36.                //移除视图
    37.                BOOL cancle = [transitionContext transitionWasCancelled];
    38.                if (!cancle) {
    39.                    [fromView removeFromSuperview];
    40.                }
    41.
    42.                //动画完成后,视图上的事件才能处理
    43.                [transitionContext completeTransition:!cancle];
    44.            }];
    45. }
    46. @end
  • 开始执行，结果如gif图





七、总结

好了，这三种常用的转场动画都进行了自定义，当然至于后两种的交互转场动画跟modal实现原理一样，就不介绍了。借用和修改别人的一个图，做个总结吧，如下：



原文链接：http://www.cnblogs.com/XYQ-208910/p/11814259.html

 友情链接：直通硅谷 　点职佳 　北美留学生论坛

iOS热门文章

  • snapkit更新约束崩溃的问题
  • iOS 14 UDP收不到广播处理
  • iOS开发用如何用类&quot;SKStoreProductViewController&quot;跳转AppStore点赞评分？
  • Charles抓包iPhone注意点以及SSL Proxying enabled for this host
  • 笔记：long、longlong、int、float、NSString相互转换
  • ios开发UI篇—UITextfield
  • 自定义相机碰到的问题，比如常见的拍照录制视频方向，镜像左右颠倒等问题
  • C 和 Object-C中的 #ifdef #ifndef
  • 使用Hbuilder将自己app发布到App Store（一）
  • iOS开发 - 超级签名实现之描述文件

    • iOS推荐文章

  • iOS开发基础135-Core Data
  • uniapp-vue3-oadmin手机后台实例|vite5.x+uniapp多端仿ios管理系统
  • 苹果支付有哪些坑，为什么苹果支付比支付宝和微信容易丢单？
  • 带你走进灵动岛
  • vue3+ts Axios封装—重复请求拦截
  • axios详解以及完整封装方法
  • 关于 axios 是什么？以及怎么用？
  • iOS气泡提示工具BubblePopup的使用
  • 一篇文章带你详细了解axios的封装 - 公众号-web前端进阶
  • [MAUI]模仿iOS多任务切换卡片滑动的交互实现

    • 本站QQ群：前端 618073944 | Java 606181507 | Python 626812652 | C/C++ 612253063 | 微信 634508462 | 苹果 692586424 | C#/.net 182808419 | PHP 305140648 | 运维 608723728

    W3xue 的所有内容仅供测试，对任何法律问题及风险不承担任何责任。通过使用本站内容随之而来的风险与本站无关。
    关于我们  |  意见建议  |  捐助我们  |  报错有奖  |  广告合作、友情链接（目前9元/月）请联系QQ：27243702 沸活量
    皖ICP备17017327号-2　皖公网安备34020702000426号
