Oracle中谓词推入导致的数据不一致案例
来源：cnblogs　　作者：小海蟹　　时间：2019/9/24 10:48:47　　对本文有异议

现象

下面的语句， 能查到deviceid 为DEV005M0的记录， 但是加上deviceid = 'DEV005M0'这个条件后， 查询语句查不出结果了。
语句如下：

  1. select * from
  2. (    select deviceid deviceid, port, cvlan, status, funcswitch,
  3.             decode(funcswitch, 3, pvlan, 1, pvlan) svlan,
  4.             decode(funcswitch, 3, pvlan, 1,
  5.             lead(pvlan)over(partition by deviceid, port, cvlan, status order by pvlan asc)) evlan
  6.      from   vlanstatus_pre2bak
  7. )
  8. where  funcswitch <> 2 and evlan is null  -- and  deviceid = 'DEV005M0';

当注释掉deviceid = 'DEV005M0'， 查询结果如下：
file

当增加deviceid = 'DEV005M0'，查询结果没有记录：
file

deviceid的数据类型为char(8), vlanstatus_pre2bak的deviceid数据也没有空格等特殊字符， 非常诡异。下面来具体分析。

分析如下

1. 查询语句， 查询没有记录

  1. select * from
  2. (    select deviceid deviceid, port, cvlan, status, funcswitch,
  3.             decode(funcswitch, 3, pvlan, 1, pvlan) svlan,
  4.             decode(funcswitch, 3, pvlan, 1,
  5.             lead(pvlan)over(partition by deviceid, port, cvlan, status order by pvlan asc)) evlan
  6.      from   vlanstatus_pre2bak
  7. )
  8. where  funcswitch <> 2 and evlan is null  and  deviceid = 'DEV005M0' ;

或者：

  1. with tmptab as
  2. (
  3.     select  deviceid deviceid, port, cvlan, status, funcswitch,
  4.             decode(funcswitch, 3, pvlan, 1, pvlan) svlan,
  5.             decode(funcswitch, 3, pvlan, 1,
  6.             lead(pvlan)over(partition by deviceid, port, cvlan, status order by pvlan asc)) evlan
  7.      from   vlanstatus_pre2bak
  8. )
  9. select * from tmptab
  10. where  funcswitch <> 2 and evlan is null  and  deviceid = 'DEV005M0' ;

查看执行计划：

  1. SQL> set lines 200
  2. SQL> set pages 200
  3. SQL> explain plan for
  4.   2  select * from
  5.   3  (    select deviceid deviceid, port, cvlan, status, funcswitch,
  6.   4              decode(funcswitch, 3, pvlan, 1, pvlan) svlan,
  7.   5              decode(funcswitch, 3, pvlan, 1,
  8.   6              lead(pvlan)over(partition by deviceid, port, cvlan, status order by pvlan asc)) evlan
  9.   7       from   vlanstatus_pre2bak
  10.   8  )
  11.   9  where  funcswitch <> 2 and evlan is null  and  deviceid = 'DEV005M0' ;
  13. 已解释。
  15. SQL> select * from table(dbms_xplan.display);
  17. PLAN_TABLE_OUTPUT
  18. ----------------------------------------------------------------------------------------------------
  19. Plan hash value: 2175325539
  21. ------------------------------------------------------------------------------------------
  22. | Id  | Operation           | Name               | Rows  | Bytes | Cost (%CPU)| Time     |
  23. ------------------------------------------------------------------------------------------
  24. |   0 | SELECT STATEMENT    |                    |    70 | 49350 |   692   (1)| 00:00:09 |
  25. |*  1 |  VIEW               |                    |    70 | 49350 |   692   (1)| 00:00:09 |
  26. |   2 |   WINDOW SORT       |                    |    70 |  3430 |   692   (1)| 00:00:09 |
  27. |*  3 |    TABLE ACCESS FULL| VLANSTATUS_PRE2BAK |    70 |  3430 |   691   (1)| 00:00:09 |
  28. ------------------------------------------------------------------------------------------
  30. Predicate Information (identified by operation id):
  31. ---------------------------------------------------
  33.    1 - filter("FUNCSWITCH"<>2 AND "EVLAN" IS NULL)
  34.    3 - filter("DEVICEID"='DEV005M0')
  36. 已选择16行。
  38. SQL>

查看ID为3的谓词过滤（3 - filter("DEVICEID"='DEV005M0')）， 说明先在表VLANSTATUS_PRE2BAK执行了deviceid = 'DEV005M0'操作。ID为1的谓词过滤只有两个（1 - filter("FUNCSWITCH"<>2 AND "EVLAN" IS NULL)），说明这个查询语句先在子查询里面过滤了deviceid = 'DEV005M0'的记录，然后在整个查询视图执行过滤条件FUNCSWITCH<>2 AND EVLAN IS NULL。这个现象就是谓词推入。

2. 使用materialize的hint避免谓词推入

  1. with tmptab as
  2. (
  3.     select  /*+materialize*/ deviceid deviceid, port, cvlan, status, funcswitch,
  4.             decode(funcswitch, 3, pvlan, 1, pvlan) svlan,
  5.             decode(funcswitch, 3, pvlan, 1,
  6.             lead(pvlan)over(partition by deviceid, port, cvlan, status order by pvlan asc)) evlan
  7.      from   vlanstatus_pre2bak
  8. )
  9. select * from tmptab
  10. where  funcswitch <> 2 and evlan is null  and  deviceid = 'DEV005M0' ;

file

  1. SQL> set lines 200
  2. SQL> set pages 200
  3. SQL> explain plan for
  4.   2  with tmptab as
  5.   3  (
  6.   4      select  /*+materialize*/ deviceid deviceid, port, cvlan, status, funcswitch,
  7.   5              decode(funcswitch, 3, pvlan, 1, pvlan) svlan,
  8.   6              decode(funcswitch, 3, pvlan, 1,
  9.   7              lead(pvlan)over(partition by deviceid, port, cvlan, status order by pvlan asc)) evlan
  10.   8       from   vlanstatus_pre2bak
  11.   9  )
  12.  10  select * from tmptab
  13.  11  where  funcswitch <> 2 and evlan is null  and  deviceid = 'DEV005M0' ;
  15. 已解释。
  17. SQL> select * from table(dbms_xplan.display);
  19. PLAN_TABLE_OUTPUT
  20. ----------------------------------------------------------------------------------------------------
  21. Plan hash value: 1444871666
  23. ----------------------------------------------------------------------------------------------------
  24. | Id  | Operation                  | Name                        | Rows  | Bytes |TempSpc| Cost (%CPU)| Time     |
  25. ----------------------------------------------------------------------------------------------------
  26. |   0 | SELECT STATEMENT           |                             |   313K|   210M|       |  5062   (1)| 00:01:01 |
  27. |   1 |  TEMP TABLE TRANSFORMATION |                             |       |       |       |            |          |
  28. |   2 |   LOAD AS SELECT           | SYS_TEMP_0FD9D66CE_DF9DBBFB |       |       |       |            |          |
  29. |   3 |    WINDOW SORT             |                             |   313K|    14M|    20M|  4492   (1)| 00:00:54 |
  30. |   4 |     TABLE ACCESS FULL      | VLANSTATUS_PRE2BAK          |   313K|    14M|       |   690   (1)| 00:00:09 |
  31. |*  5 |   VIEW                     |                             |   313K|   210M|       |   570   (1)| 00:00:07 |
  32. |   6 |    TABLE ACCESS FULL       | SYS_TEMP_0FD9D66CE_DF9DBBFB |   313K|    14M|       |   570   (1)| 00:0
  33. ----------------------------------------------------------------------------------------------------
  35. Predicate Information (identified by operation id):
  36. ---------------------------------------------------
  38.    5 - filter("FUNCSWITCH"<>2 AND "EVLAN" IS NULL AND "DEVICEID"='DEV005M0')
  40. 已选择18行。
  42. SQL>

查看ID为5的谓词过滤条件， 三个条件都是发生在视图view上面。

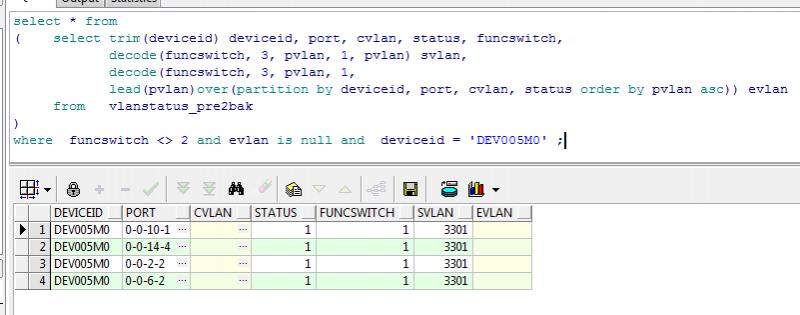

3. 使用trim或者拼接一个空的字符

  1. select * from
  2. (    select trim(deviceid) deviceid, port, cvlan, status, funcswitch,
  3.             decode(funcswitch, 3, pvlan, 1, pvlan) svlan,
  4.             decode(funcswitch, 3, pvlan, 1,
  5.             lead(pvlan)over(partition by deviceid, port, cvlan, status order by pvlan asc)) evlan
  6.      from   vlanstatus_pre2bak
  7. )
  8. where  funcswitch <> 2 and evlan is null and  deviceid = 'DEV005M0' ;

file

查看执行计划：

  1. SQL> set lines 200
  2. SQL> set lines 300
  3. SQL> set pages 200
  4. SQL> explain plan for
  5.   2  select * from
  6.   3  (    select trim(deviceid) deviceid, port, cvlan, status, funcswitch,
  7.   4              decode(funcswitch, 3, pvlan, 1, pvlan) svlan,
  8.   5              decode(funcswitch, 3, pvlan, 1,
  9.   6              lead(pvlan)over(partition by deviceid, port, cvlan, status order by pvlan asc)) evlan
  10.   7       from   vlanstatus_pre2bak
  11.   8  )
  12.   9  where  funcswitch <> 2 and evlan is null and  deviceid = 'DEV005M0';
  14. 已解释。
  16. SQL> select * from table(dbms_xplan.display);
  18. PLAN_TABLE_OUTPUT
  19. ----------------------------------------------------------------------------------------------------
  20. Plan hash value: 2175325539
  22. --------------------------------------------------------------------------------------------------
  23. | Id  | Operation           | Name               | Rows  | Bytes |TempSpc| Cost (%CPU)| Time     |
  24. --------------------------------------------------------------------------------------------------
  25. |   0 | SELECT STATEMENT    |                    |   313K|   209M|       |  4492   (1)| 00:00:54 |
  26. |*  1 |  VIEW               |                    |   313K|   209M|       |  4492   (1)| 00:00:54 |
  27. |   2 |   WINDOW SORT       |                    |   313K|    14M|    20M|  4492   (1)| 00:00:54 |
  28. |   3 |    TABLE ACCESS FULL| VLANSTATUS_PRE2BAK |   313K|    14M|       |   690   (1)| 00:00:09 |
  29. --------------------------------------------------------------------------------------------------
  31. Predicate Information (identified by operation id):
  32. ---------------------------------------------------
  34.    1 - filter("FUNCSWITCH"<>2 AND "EVLAN" IS NULL AND "DEVICEID"='DEV005M0')
  36. 已选择15行。
  38. SQL>

查看谓词过滤， 三个过滤条件都发生在ID为1的view上面。

原文链接：http://www.cnblogs.com/xiaohe001/p/11576785.html
