EditText 使用详解
来源:cnblogs  作者:yooooooo  时间:2020/12/8 8:44:57  对本文有异议

本篇文章主要介绍 Android 开发中的部分知识点,通过阅读本篇文章,您将收获以下内容:

一、EditText 继承关系

二、EditText 常用举例

三、EditText 自定义背景框

四、EditText自动检测输入内容

五、Edittext 密文显示

六、EditText 限制只能输入特定字符

七、EditText 输入保存的字符串不能为空

一、EditText 继承关系

EditText继承关系 如下:

  1. java.lang.Object
  2. ? android.view.View
  3. ? android.widget.TextView
  4. ? android.widget.EditText

二、EditText 常用举例

EditText主要用于输入和修改文本内容。

限制只能输入纯文本内容举例如下:

  1. <EditText
  2. android:id="@+id/plain_text_input"
  3. android:layout_height="wrap_content"
  4. android:layout_width="match_parent"
  5. android:inputType="text"/>

三、EditText 自定义背景框

  • xml 中使用EditText 控件
  1. <!-- 自定义EditText 背景 -->
  2. <EditText
  3. android:layout_width="match_parent"
  4. android:layout_height="wrap_content"
  5. android:layout_marginLeft="10dp"
  6. android:layout_marginRight="10dp"
  7. android:layout_marginTop="10dp"
  8. android:background="@drawable/custom_edittext_background"
  9. android:gravity="center"
  10. android:hint="一、自定义EditText背景框"
  11. android:padding="8dp"
  12. android:textSize="16sp" />
  • 自定义 EditText 背景框
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <shape xmlns:android="http://schemas.android.com/apk/res/android"
  3. android:shape="rectangle">
  4. <!-- 圆角-->
  5. <corners android:radius="5dp" />
  6. <!--描边-->
  7. <stroke
  8. android:width="1dp"
  9. android:color="@android:color/holo_blue_light" />
  10. </shape>

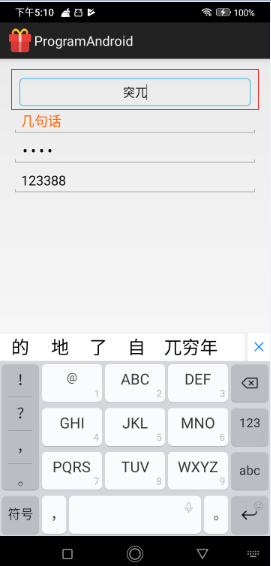

  • 实现效果

四、EditText自动检测输入内容

  • xml 中使用EditText 控件
  1. <EditText
  2. android:layout_width="fill_parent"
  3. android:layout_height="wrap_content"
  4. android:autoText="true"
  5. android:hint="二、自动检测输入更正属性 autoText"
  6. android:textColor="#FF6100" />

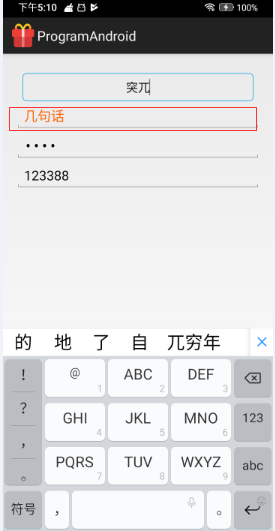

  • 实现效果


五、Edittext 密文显示

  • xml 中使用EditText 控件
  1. <!-- 以密文的形式显示 -->
  2. <EditText
  3. android:layout_width="match_parent"
  4. android:layout_height="wrap_content"
  5. android:hint="三、以密文的形式显示密码"
  6. android:password="true" />
  • 实现效果


六、EditText 限制只能输入特定字符

限定只能输入阿拉伯数字实现如下:

  • xml 中使用EditText 控件
  1. <!-- 设置允许输入的字符 -->
  2. <EditText
  3. android:layout_width="fill_parent"
  4. android:layout_height="wrap_content"
  5. android:digits="123456789.+-*/\n()"
  6. android:hint="四、设置限制允许输入阿拉伯数字" />

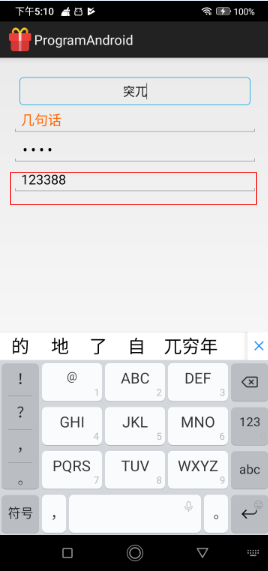

  • 实现效果


七、EditText 输入保存的字符串不能为空

EditText常用来获取用户输入内容,因为我们要规避用户输入的内容为空的情况。

实现效果如下:


实现代码如下:

原文链接:http://www.cnblogs.com/linhaostudy/p/14068023.html
