WPF实现树形表格控件(TreeListView)
来源：cnblogs　　作者：趋时软件　　时间：2024/4/3 9:24:20　　对本文有异议

前言

　　本文将探讨如何利用WPF框架实现树形表格控件，该控件不仅能够有效地展示复杂的层级数据，还能够提供丰富的个性化定制选项。我们将介绍如何使用WPF提供的控件、模板、布局、数据绑定等技术来构建这样一个树形表格。

一、运行效果

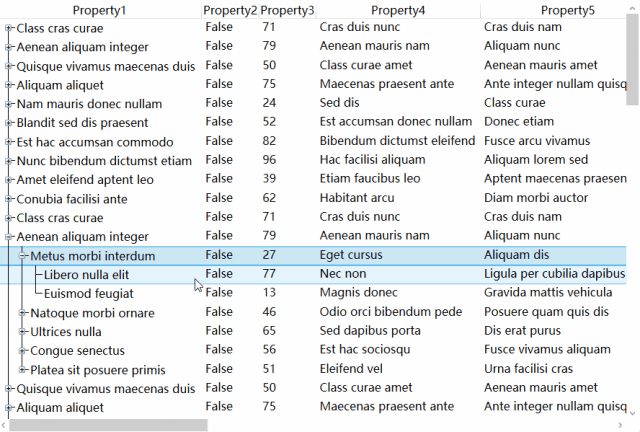

1.1默认样式

1.2 自定义样式

二、代码实现

2.1 创建自定义控件（TreeListView）

      新建一个继承自TreeView的控件，并定义一个类型为ViewBase的View依赖属性，用于在代码中指定列。

  1. public class TreeListView : TreeView
  2. {
  3.         public ViewBase View
  4.         {
  5.             get { return (ViewBase)GetValue(ViewProperty); }
  6.             set { SetValue(ViewProperty, value); }
  7.         }
  9.         public static readonly DependencyProperty ViewProperty =
  10.             DependencyProperty.Register("View", typeof(ViewBase), typeof(TreeListView));
  11. }

2.2 在TreeListView控件模板中处理列头

   为了在TreeListView中显示列头，需要在合适的位置添加GridViewHeaderRowPresenter控件，并在Columns属性上绑定我们之前定义的View.Columns属性。下面我们首先来分析TreeView控件模板的代码。

  1. <ControlTemplate TargetType="{x:Type TreeView}">
  2.     <Border x:Name="Bd" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" SnapsToDevicePixels="true">
  3.         <ScrollViewer x:Name="_tv_scrollviewer_" Background="{TemplateBinding Background}" CanContentScroll="false" Focusable="false" HorizontalScrollBarVisibility="{TemplateBinding ScrollViewer.HorizontalScrollBarVisibility}" Padding="{TemplateBinding Padding}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalScrollBarVisibility="{TemplateBinding ScrollViewer.VerticalScrollBarVisibility}">
  4.             <ItemsPresenter/>
  5.         </ScrollViewer>
  6.     </Border>
  7.     <ControlTemplate.Triggers>
  8.         <Trigger Property="IsEnabled" Value="false">
  9.             <Setter Property="Background" TargetName="Bd" Value="{DynamicResource {x:Static SystemColors.ControlBrushKey}}"/>
  10.         </Trigger>
  11.         <Trigger Property="VirtualizingPanel.IsVirtualizing" Value="true">
  12.             <Setter Property="CanContentScroll" TargetName="_tv_scrollviewer_" Value="true"/>
  13.         </Trigger>
  14.     </ControlTemplate.Triggers>
  15. </ControlTemplate>

      通过以上代码我们可以看出，只要将GridViewHeaderRowPresenter控件添加到ScrollViewer控件上面即可实现列头功能，但这样会有一个问题，那就是内容宽度超出控件宽度后，鼠标拖动横向滚动条时列头不会跟随下方的数据列表一起滚动。为解决这个问题我们需要将GridViewHeaderRowPresenter放置到ScrollViewer控件模板中，以下为完整代码。

  1. <Style x:Key="{x:Static GridView.GridViewScrollViewerStyleKey}" TargetType="{x:Type ScrollViewer}">
  2.     <Setter Property="Focusable" Value="false" />
  3.     <Setter Property="Template">
  4.         <Setter.Value>
  5.             <ControlTemplate TargetType="{x:Type ScrollViewer}">
  6.                 <Grid Background="{TemplateBinding Background}" SnapsToDevicePixels="true">
  7.                     <Grid.ColumnDefinitions>
  8.                         <ColumnDefinition Width="*" />
  9.                         <ColumnDefinition Width="Auto" />
  10.                     </Grid.ColumnDefinitions>
  11.                     <Grid.RowDefinitions>
  12.                         <RowDefinition Height="*" />
  13.                         <RowDefinition Height="Auto" />
  14.                     </Grid.RowDefinitions>
  15.
  16.                     <DockPanel Margin="{TemplateBinding Padding}">
  17.                         <ScrollViewer
  18.                                 DockPanel.Dock="Top"
  19.                                 Focusable="false"
  20.                                 HorizontalScrollBarVisibility="Hidden"
  21.                                 VerticalScrollBarVisibility="Hidden">
  22.                             <GridViewHeaderRowPresenter
  23.                                     Margin="2,0,2,0"
  24.                                     AllowsColumnReorder="{Binding TemplatedParent.View.AllowsColumnReorder, RelativeSource={RelativeSource TemplatedParent}}"
  25.                                     ColumnHeaderContainerStyle="{Binding TemplatedParent.View.ColumnHeaderContainerStyle, RelativeSource={RelativeSource TemplatedParent}}"
  26.                                     ColumnHeaderContextMenu="{Binding TemplatedParent.View.ColumnHeaderContextMenu, RelativeSource={RelativeSource TemplatedParent}}"
  27.                                     ColumnHeaderStringFormat="{Binding TemplatedParent.View.ColumnHeaderStringFormat, RelativeSource={RelativeSource TemplatedParent}}"
  28.                                     ColumnHeaderTemplate="{Binding TemplatedParent.View.ColumnHeaderTemplate, RelativeSource={RelativeSource TemplatedParent}}"
  29.                                     ColumnHeaderTemplateSelector="{Binding TemplatedParent.View.ColumnHeaderTemplateSelector, RelativeSource={RelativeSource TemplatedParent}}"
  30.                                     ColumnHeaderToolTip="{Binding TemplatedParent.View.ColumnHeaderToolTip, RelativeSource={RelativeSource TemplatedParent}}"
  31.                                     Columns="{Binding TemplatedParent.View.Columns, RelativeSource={RelativeSource TemplatedParent}}"
  32.                                     SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" />
  33.                         </ScrollViewer>
  34.                         <ScrollContentPresenter
  35.                                 x:Name="PART_ScrollContentPresenter"
  36.                                 CanContentScroll="{TemplateBinding CanContentScroll}"
  37.                                 Content="{TemplateBinding Content}"
  38.                                 ContentTemplate="{TemplateBinding ContentTemplate}"
  39.                                 KeyboardNavigation.DirectionalNavigation="Local"
  40.                                 SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" />
  41.                     </DockPanel>
  42.
  43.                     <ScrollBar
  44.                             x:Name="PART_HorizontalScrollBar"
  45.                             Grid.Row="1"
  46.                             Cursor="Arrow"
  47.                             Maximum="{TemplateBinding ScrollableWidth}"
  48.                             Minimum="0.0"
  49.                             Orientation="Horizontal"
  50.                             ViewportSize="{TemplateBinding ViewportWidth}"
  51.                             Visibility="{TemplateBinding ComputedHorizontalScrollBarVisibility}"
  52.                             Value="{Binding HorizontalOffset, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}" />
  53.                     <ScrollBar
  54.                             x:Name="PART_VerticalScrollBar"
  55.                             Grid.Column="1"
  56.                             Cursor="Arrow"
  57.                             Maximum="{TemplateBinding ScrollableHeight}"
  58.                             Minimum="0.0"
  59.                             Orientation="Vertical"
  60.                             ViewportSize="{TemplateBinding ViewportHeight}"
  61.                             Visibility="{TemplateBinding ComputedVerticalScrollBarVisibility}"
  62.                             Value="{Binding VerticalOffset, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}" />
  63.                     <DockPanel
  64.                             Grid.Row="1"
  65.                             Grid.Column="1"
  66.                             Background="{Binding Background, ElementName=PART_VerticalScrollBar}"
  67.                             LastChildFill="false">
  68.                         <Rectangle
  69.                                 Width="1"
  70.                                 DockPanel.Dock="Left"
  71.                                 Fill="White"
  72.                                 Visibility="{TemplateBinding ComputedVerticalScrollBarVisibility}" />
  73.                         <Rectangle
  74.                                 Height="1"
  75.                                 DockPanel.Dock="Top"
  76.                                 Fill="White"
  77.                                 Visibility="{TemplateBinding ComputedHorizontalScrollBarVisibility}" />
  78.                     </DockPanel>
  79.                 </Grid>
  80.             </ControlTemplate>
  81.         </Setter.Value>
  82.     </Setter>
  83. </Style>
  84.
  85. <Style TargetType="{x:Type local:TreeListView}">
  86.     <Setter Property="ScrollViewer.HorizontalScrollBarVisibility" Value="Auto" />
  87.     <Setter Property="ScrollViewer.VerticalScrollBarVisibility" Value="Auto" />
  88.     <Setter Property="ScrollViewer.CanContentScroll" Value="true" />
  89.     <Setter Property="Template">
  90.         <Setter.Value>
  91.             <ControlTemplate TargetType="{x:Type local:TreeListView}">
  92.                 <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}">
  93.                     <ScrollViewer Padding="{TemplateBinding Padding}" Style="{StaticResource {x:Static GridView.GridViewScrollViewerStyleKey}}">
  94.                         <ItemsPresenter />
  95.                     </ScrollViewer>
  96.                 </Border>
  97.             </ControlTemplate>
  98.         </Setter.Value>
  99.     </Setter>
  100. </Style>

2.3 在TreeListViewItem模板中处理子项的展开和收缩

      新建一个继承自TreeViewItem的类，命名为TreeListViewItem（如有个性化需求，可以在该类中处理），编辑控件模板，在模板中添加以下代码。

  1. <Style TargetType="{x:Type local:TreeListViewItem}">
  2.     <Setter Property="BorderThickness" Value="1" />
  3.     <Setter Property="Template">
  4.         <Setter.Value>
  5.             <ControlTemplate TargetType="{x:Type local:TreeListViewItem}">
  6.                 <StackPanel>
  7.                     <Border
  8.                             Name="Bd"
  9.                             Padding="{TemplateBinding Padding}"
  10.                             Background="{TemplateBinding Background}"
  11.                             BorderBrush="{TemplateBinding BorderBrush}"
  12.                             BorderThickness="{TemplateBinding BorderThickness}">
  13.                         <GridViewRowPresenter
  14.                                 x:Name="PART_Header"
  15.                                 Columns="{Binding RelativeSource={RelativeSource AncestorType=local:TreeListView}, Path=View.Columns}"
  16.                                 Content="{TemplateBinding Header}" />
  17.                     </Border>
  18.                     <ItemsPresenter x:Name="ItemsHost" />
  19.                 </StackPanel>
  20.                 <ControlTemplate.Triggers>
  21.                     <Trigger Property="IsExpanded" Value="false">
  22.                         <Setter TargetName="ItemsHost" Property="Visibility" Value="Collapsed" />
  23.                     </Trigger>
  24.                     <MultiTrigger>
  25.                         <MultiTrigger.Conditions>
  26.                             <Condition Property="HasHeader" Value="false" />
  27.                             <Condition Property="Width" Value="Auto" />
  28.                         </MultiTrigger.Conditions>
  29.                         <Setter TargetName="PART_Header" Property="MinWidth" Value="75" />
  30.                     </MultiTrigger>
  31.                     <MultiTrigger>
  32.                         <MultiTrigger.Conditions>
  33.                             <Condition Property="HasHeader" Value="false" />
  34.                             <Condition Property="Height" Value="Auto" />
  35.                         </MultiTrigger.Conditions>
  36.                         <Setter TargetName="PART_Header" Property="MinHeight" Value="19" />
  37.                     </MultiTrigger>
  38.
  39.                     <MultiTrigger>
  40.                         <MultiTrigger.Conditions>
  41.                             <Condition Property="extensions:TreeViewItemExtensions.IsMouseDirectlyOverItem" Value="True" />
  42.                         </MultiTrigger.Conditions>
  43.                         <Setter TargetName="Bd" Property="Background" Value="{StaticResource Item.MouseOver.Background}" />
  44.                         <Setter TargetName="Bd" Property="BorderBrush" Value="{StaticResource Item.MouseOver.Border}" />
  45.                     </MultiTrigger>
  46.                     <MultiTrigger>
  47.                         <MultiTrigger.Conditions>
  48.                             <Condition Property="Selector.IsSelectionActive" Value="False" />
  49.                             <Condition Property="IsSelected" Value="True" />
  50.                         </MultiTrigger.Conditions>
  51.                         <Setter TargetName="Bd" Property="Background" Value="{StaticResource Item.SelectedInactive.Background}" />
  52.                         <Setter TargetName="Bd" Property="BorderBrush" Value="{StaticResource Item.SelectedInactive.Border}" />
  53.                     </MultiTrigger>
  54.                     <MultiTrigger>
  55.                         <MultiTrigger.Conditions>
  56.                             <Condition Property="Selector.IsSelectionActive" Value="True" />
  57.                             <Condition Property="IsSelected" Value="True" />
  58.                         </MultiTrigger.Conditions>
  59.                         <Setter TargetName="Bd" Property="Background" Value="{StaticResource Item.SelectedActive.Background}" />
  60.                         <Setter TargetName="Bd" Property="BorderBrush" Value="{StaticResource Item.SelectedActive.Border}" />
  61.                     </MultiTrigger>
  62.                     <Trigger Property="IsEnabled" Value="False">
  63.                         <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.GrayTextBrushKey}}" />
  64.                     </Trigger>
  65.                 </ControlTemplate.Triggers>
  66.             </ControlTemplate>
  67.         </Setter.Value>
  68.     </Setter>
  69. </Style>

    此处的核心在于模板中添加了GridViewRowPresenter控件，并在Columns属性上绑定了我们之前定义的View.Columns属性，这样就可以在每一行上面显示列数据。还有一个关键点是ItemsPresenter，它用于显示子项数据，此处命名为ItemsHost，它由属性触发器中的代码来控件展开和收起。以下是属性触发器代码。

  1. <Trigger Property="IsExpanded" Value="false">
  2.     <Setter TargetName="ItemsHost" Property="Visibility" Value="Collapsed" />
  3. </Trigger>

2.4 在单元格模板中控件子项的展开与收起

   为了达到展开和收起的效果，需要在首列的单元格中控制TreeListViewItem的IsExpanded属性。以下为完整代码。

  1. <DataTemplate x:Key="ExpandCellTemplate">
  2.     <DockPanel>
  3.         <ToggleButton
  4.                             x:Name="Expander"
  5.                             Margin="{Binding Path=Level, Converter={StaticResource LevelIndentConverter}, RelativeSource={RelativeSource AncestorType={x:Type TreeListViewItem}}}"
  6.                             ClickMode="Press"
  7.                             IsChecked="{Binding Path=IsExpanded, RelativeSource={RelativeSource AncestorType={x:Type TreeListViewItem}}}"
  8.                             Style="{StaticResource ExpandCollapseToggleStyle}" />
  9.         <TextBlock Text="{Binding Property1}" />
  10.     </DockPanel>
  11.     <DataTemplate.Triggers>
  12.         <DataTrigger Binding="{Binding Path=HasItems, RelativeSource={RelativeSource AncestorType={x:Type TreeListViewItem}}}" Value="False">
  13.             <Setter TargetName="Expander" Property="Visibility" Value="Hidden" />
  14.         </DataTrigger>
  15.     </DataTemplate.Triggers>
  16. </DataTemplate>

其关键代码为

  1. IsChecked="{Binding Path=IsExpanded, RelativeSource={RelativeSource AncestorType={x:Type TreeListViewItem}}}"

2.5 控件使用

  1. <TreeListView ItemsSource="{Binding Collection}">
  2.     <TreeListView.ItemTemplate>
  3.         <HierarchicalDataTemplate ItemsSource="{Binding Collection, IsAsync=True}" />
  4.     </TreeListView.ItemTemplate>
  5.     <TreeListView.View>
  6.         <GridView>
  7.             <GridViewColumn CellTemplate="{StaticResource ExpandCellTemplate}" Header="Property1" />
  8.             <GridViewColumn DisplayMemberBinding="{Binding Property2}" Header="Property2" />
  9.             <GridViewColumn DisplayMemberBinding="{Binding Property3}" Header="Property3" />
  10.             <GridViewColumn DisplayMemberBinding="{Binding Property4}" Header="Property4" />
  11.             <GridViewColumn DisplayMemberBinding="{Binding Property5}" Header="Property5" />
  12.             <GridViewColumn DisplayMemberBinding="{Binding Property6}" Header="Property6" />
  13.             <GridViewColumn DisplayMemberBinding="{Binding Property7}" Header="Property7" />
  14.             <GridViewColumn DisplayMemberBinding="{Binding Property8}" Header="Property8" />
  15.             <GridViewColumn DisplayMemberBinding="{Binding Property9}" Header="Property9" />
  16.             <GridViewColumn DisplayMemberBinding="{Binding Property10}" Header="Property10" />
  17.             <GridViewColumn DisplayMemberBinding="{Binding Property11}" Header="Property11" />
  18.             <GridViewColumn DisplayMemberBinding="{Binding Property12}" Header="Property12" />
  19.         </GridView>
  20.     </TreeListView.View>
  21. </TreeListView>



 技术交流群

 联系方式

原文链接：https://www.cnblogs.com/qushi2020/p/18109923

 友情链接：直通硅谷 　点职佳 　北美留学生论坛

ASP.net热门文章

  • 【Dotnet 工具箱】WPF UI - 现代化设计的开源 WPF 框架
  • net core 使用 SqlSugar
  • .NETCore下CI/CD之自动化测试
  • .net core部署到linux可能碰到的问题
  • Abp vNext 自定义 Ef Core 仓储引发异常
  • .NetCore 消息队列的使用
  • .NetCore WebApi——基于JWT的简单身份认证与授权（Swagger）
  • Abp.NHibernate连接PostgreSQl数据库
  • ModelValidator基于元数据的验证
  • .NET MAUI 安卓应用开发初体验

    • ASP.net推荐文章

  • Gradio.NET 支持 .NET 8 简化 Web 应用开发
  • .NET 轻量化定时任务调度 FreeScheduler
  • WPF 模仿前端大佬写一个Hover效果
  • WPF 模拟UWP原生窗口样式——亚克力|云母材质、自定义标题栏样式、原生DWM动画 （附我封装好的类）
  • .NET 音频采集
  • .NET8 Blazor 从入门到精通：（三）类库和表单
  • wpf 如何7步写一个badge控件
  • .NET 高效Nuget管理工具（开源）
  • .NET 8 跨平台高性能边缘采集网关
  • .NET 窗口/屏幕录制

    • 本站QQ群：前端 618073944 | Java 606181507 | Python 626812652 | C/C++ 612253063 | 微信 634508462 | 苹果 692586424 | C#/.net 182808419 | PHP 305140648 | 运维 608723728

    W3xue 的所有内容仅供测试，对任何法律问题及风险不承担任何责任。通过使用本站内容随之而来的风险与本站无关。
    关于我们  |  意见建议  |  捐助我们  |  报错有奖  |  广告合作、友情链接（目前9元/月）请联系QQ：27243702 沸活量
    皖ICP备17017327号-2　皖公网安备34020702000426号
