SpringBoot集成quartz实现定时任务详解
来源：jb51　　时间：2022/8/1 11:08:39　　对本文有异议

准备知识点

需要了解常用的Quartz框架。

什么是Quartz

来源百度百科, 官网地址：http://www.quartz-scheduler.org/

Quartz是OpenSymphony开源组织在Job scheduling领域又一个开源项目，它可以与J2EE与J2SE应用程序相结合也可以单独使用。Quartz可以用来创建简单或为运行十个，百个，甚至是好几万个Jobs这样复杂的程序。Jobs可以做成标准的Java组件或 EJBs。

它的特点如下

  • 纯java实现，可以作为独立的应用程序，也可以嵌入在另一个独立式应用程序运行
  • 强大的调度功能，Spring默认的调度框架，灵活可配置；
  • 作业持久化，调度环境持久化机制，可以保存并恢复调度现场。系统关闭数据不会丢失；灵活的应用方式，可以任意定义触发器的调度时间表，支持任务和调度各种组合，组件式监听器、各种插件、线程池等功能，多种存储方式等；
  • 分布式和集群能力，可以被实例化，一个Quartz集群中的每个节点作为一个独立的Quartz使用，通过相同的数据库表来感知到另一个Quartz应用

Quartz的体系结构

  • Job 表示一个工作，要执行的具体内容。
  • JobDetail 表示一个具体的可执行的调度程序，Job 是这个可执行程调度程序所要执行的内容，另外 JobDetail 还包含了这个任务调度的方案和策略。
  • Trigger 代表一个调度参数的配置，什么时候去调。
  • Scheduler 代表一个调度容器，一个调度容器中可以注册多个 JobDetail 和 Trigger。当 Trigger 与 JobDetail 组合，就可以被 Scheduler 容器调度了。

什么是Quartz持久化

为什么要持久化？

当程序突然被中断时，如断电，内存超出时，很有可能造成任务的丢失。 可以将调度信息存储到数据库里面，进行持久化，当程序被中断后，再次启动，仍然会保留中断之前的数据，继续执行，而并不是重新开始。

Quartz提供了两种持久化方式

Quartz提供两种基本作业存储类型:

RAMJobStore

在默认情况下Quartz将任务调度的运行信息保存在内存中，这种方法提供了最佳的性能，因为内存中数据访问最快。不足之处是缺乏数据的持久性，当程序路途停止或系统崩溃时，所有运行的信息都会丢失。

JobStoreTX

所有的任务信息都会保存到数据库中，可以控制事物，还有就是如果应用服务器关闭或者重启，任务信息都不会丢失，并且可以恢复因服务器关闭或者重启而导致执行失败的任务。

实现案例 - 单实例方式

本例将展示quartz实现单实例方式。

引入POM依赖

定义Job

只需要继承QuartzJobBean，并重载executeInternal方法即可定义你自己的Job执行逻辑。

  1. @Slf4j
  2. public class HelloJob extends QuartzJobBean {
  3.
  4.     @Override
  5.     protected void executeInternal(JobExecutionContext context) throws JobExecutionException {
  6.         // get parameters
  7.         context.getJobDetail().getJobDataMap().forEach(
  8.                 (k, v) -> log.info("param, key:{}, value:{}", k, v)
  9.         );
  10.         // your logics
  11.         log.info("Hello Job执行时间: " + new Date());
  12.     }
  13. }

配置Job

JobDetail, Trigger, Schedule(这里采用CronScheduleBuilder)

  1. /**
  2.  * @author pdai
  3.  */
  4. @Configuration
  5. public class QuartzConfig {
  6.
  7.     @Bean("helloJob")
  8.     public JobDetail helloJobDetail() {
  9.         return JobBuilder.newJob(HelloJob.class)
  10.                 .withIdentity("DateTimeJob")
  11.                 .usingJobData("msg", "Hello Quartz")
  12.                 .storeDurably()//即使没有Trigger关联时，也不需要删除该JobDetail
  13.                 .build();
  14.     }
  15.
  16.     @Bean
  17.     public Trigger printTimeJobTrigger() {
  18.         // 每秒执行一次
  19.         CronScheduleBuilder cronScheduleBuilder = CronScheduleBuilder.cronSchedule("0/1 * * * * ?");
  20.         return TriggerBuilder.newTrigger()
  21.                 .forJob(helloJobDetail())
  22.                 .withIdentity("quartzTaskService")
  23.                 .withSchedule(cronScheduleBuilder)
  24.                 .build();
  25.     }
  26. }

执行测试

  1. 2021-10-01 13:09:00.380  INFO 38484 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat initialized with port(s): 8080 (http)
  2. 2021-10-01 13:09:00.391  INFO 38484 --- [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
  3. 2021-10-01 13:09:00.392  INFO 38484 --- [           main] org.apache.catalina.core.StandardEngine  : Starting Servlet engine: [Apache Tomcat/9.0.50]
  4. 2021-10-01 13:09:00.526  INFO 38484 --- [           main] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring embedded WebApplicationContext
  5. 2021-10-01 13:09:00.526  INFO 38484 --- [           main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 1424 ms
  6. 2021-10-01 13:09:00.866  INFO 38484 --- [           main] org.quartz.impl.StdSchedulerFactory      : Using default implementation for ThreadExecutor
  7. 2021-10-01 13:09:00.877  INFO 38484 --- [           main] org.quartz.core.SchedulerSignalerImpl    : Initialized Scheduler Signaller of type: class org.quartz.core.SchedulerSignalerImpl
  8. 2021-10-01 13:09:00.877  INFO 38484 --- [           main] org.quartz.core.QuartzScheduler          : Quartz Scheduler v.2.3.2 created.
  9. 2021-10-01 13:09:00.878  INFO 38484 --- [           main] org.quartz.simpl.RAMJobStore             : RAMJobStore initialized.
  10. 2021-10-01 13:09:00.878  INFO 38484 --- [           main] org.quartz.core.QuartzScheduler          : Scheduler meta-data: Quartz Scheduler (v2.3.2) 'quartzScheduler' with instanceId 'NON_CLUSTERED'
  11.   Scheduler class: 'org.quartz.core.QuartzScheduler' - running locally.
  12.   NOT STARTED.
  13.   Currently in standby mode.
  14.   Number of jobs executed: 0
  15.   Using thread pool 'org.quartz.simpl.SimpleThreadPool' - with 10 threads.
  16.   Using job-store 'org.quartz.simpl.RAMJobStore' - which does not support persistence. and is not clustered.
  17.
  18. 2021-10-01 13:09:00.878  INFO 38484 --- [           main] org.quartz.impl.StdSchedulerFactory      : Quartz scheduler 'quartzScheduler' initialized from an externally provided properties instance.
  19. 2021-10-01 13:09:00.879  INFO 38484 --- [           main] org.quartz.impl.StdSchedulerFactory      : Quartz scheduler version: 2.3.2
  20. 2021-10-01 13:09:00.879  INFO 38484 --- [           main] org.quartz.core.QuartzScheduler          : JobFactory set to: org.springframework.scheduling.quartz.SpringBeanJobFactory@6075b2d3
  21. 2021-10-01 13:09:00.922  INFO 38484 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8080 (http) with context path ''
  22. 2021-10-01 13:09:00.923  INFO 38484 --- [           main] o.s.s.quartz.SchedulerFactoryBean        : Starting Quartz Scheduler now
  23. 2021-10-01 13:09:00.923  INFO 38484 --- [           main] org.quartz.core.QuartzScheduler          : Scheduler quartzScheduler_$_NON_CLUSTERED started.
  24. 2021-10-01 13:09:00.933  INFO 38484 --- [           main] tech.pdai.springboot.quartz.App          : Started App in 2.64 seconds (JVM running for 3.621)
  25. 2021-10-01 13:09:00.931  INFO 38484 --- [eduler_Worker-1] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  26. 2021-10-01 13:09:00.933  INFO 38484 --- [eduler_Worker-1] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:00 CST 2021
  27. 2021-10-01 13:09:01.001  INFO 38484 --- [eduler_Worker-2] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  28. 2021-10-01 13:09:01.001  INFO 38484 --- [eduler_Worker-2] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:01 CST 2021
  29. 2021-10-01 13:09:02.000  INFO 38484 --- [eduler_Worker-3] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  30. 2021-10-01 13:09:02.000  INFO 38484 --- [eduler_Worker-3] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:02 CST 2021
  31. 2021-10-01 13:09:03.000  INFO 38484 --- [eduler_Worker-4] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  32. 2021-10-01 13:09:03.001  INFO 38484 --- [eduler_Worker-4] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:03 CST 2021
  33. 2021-10-01 13:09:04.001  INFO 38484 --- [eduler_Worker-5] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  34. 2021-10-01 13:09:04.001  INFO 38484 --- [eduler_Worker-5] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:04 CST 2021
  35. 2021-10-01 13:09:05.002  INFO 38484 --- [eduler_Worker-6] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  36. 2021-10-01 13:09:05.003  INFO 38484 --- [eduler_Worker-6] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:05 CST 2021
  37. 2021-10-01 13:09:06.000  INFO 38484 --- [eduler_Worker-7] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  38. 2021-10-01 13:09:06.001  INFO 38484 --- [eduler_Worker-7] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:06 CST 2021
  39. 2021-10-01 13:09:07.002  INFO 38484 --- [eduler_Worker-8] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  40. 2021-10-01 13:09:07.002  INFO 38484 --- [eduler_Worker-8] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:07 CST 2021
  41. 2021-10-01 13:09:08.002  INFO 38484 --- [eduler_Worker-9] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  42. 2021-10-01 13:09:08.003  INFO 38484 --- [eduler_Worker-9] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:08 CST 2021
  43. 2021-10-01 13:09:09.000  INFO 38484 --- [duler_Worker-10] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  44. 2021-10-01 13:09:09.000  INFO 38484 --- [duler_Worker-10] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:09 CST 2021
  45. 2021-10-01 13:09:10.001  INFO 38484 --- [eduler_Worker-1] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  46. 2021-10-01 13:09:10.002  INFO 38484 --- [eduler_Worker-1] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:10 CST 2021
  47. 2021-10-01 13:09:11.014  INFO 38484 --- [eduler_Worker-2] t.pdai.springboot.quartz.job.HelloJob    : param, key:msg, value:Hello Quartz
  48. 2021-10-01 13:09:11.014  INFO 38484 --- [eduler_Worker-2] t.pdai.springboot.quartz.job.HelloJob    : Hello Job执行时间: Wed Oct 27 13:09:11 CST 2021

实现案例 - 分布式方式

本例将展示quartz实现基于数据库的分布式任务管理，和控制job生命周期。

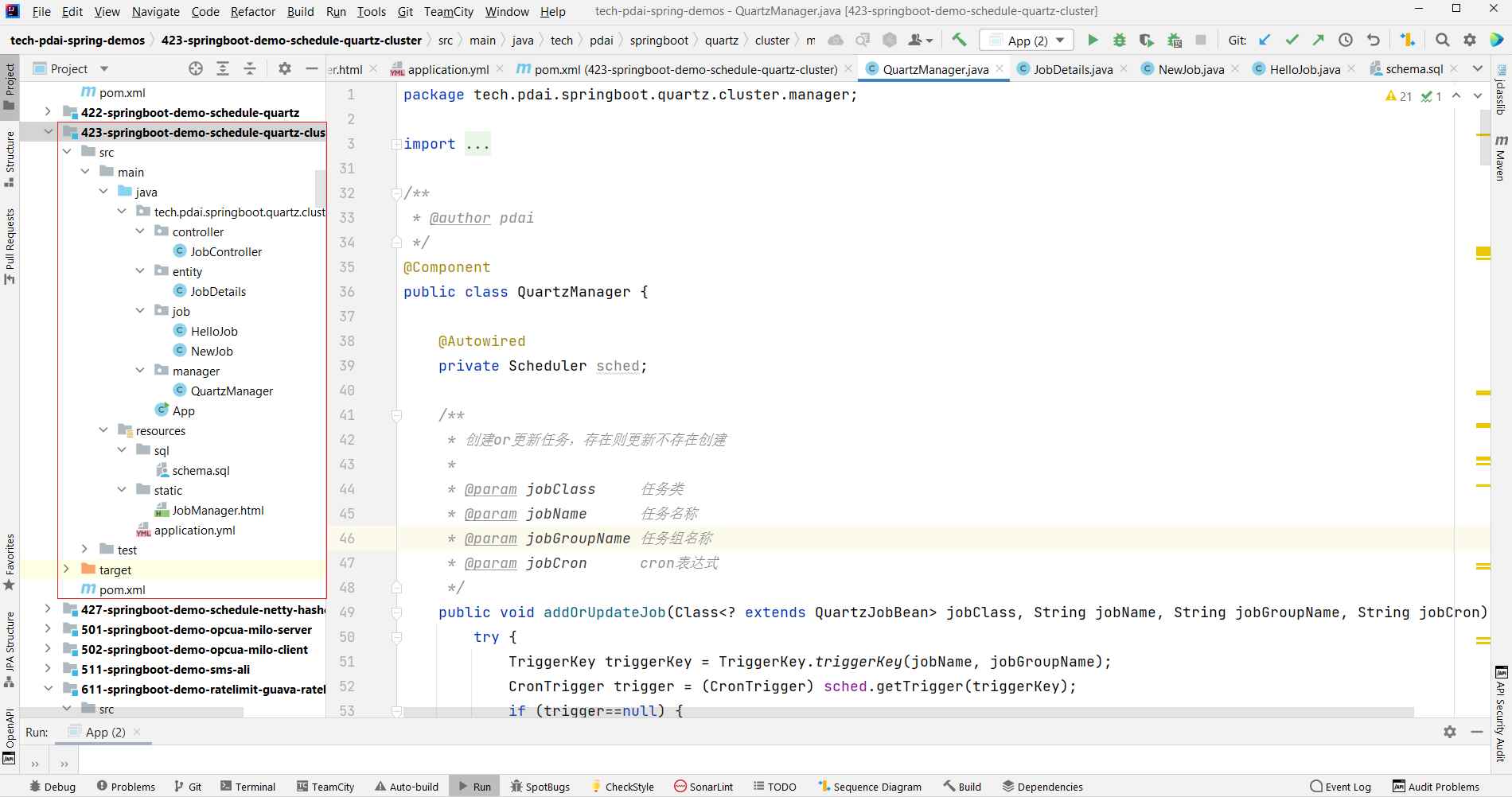

整体项目结构如下：

后端实现

pom.xml

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <project xmlns="http://maven.apache.org/POM/4.0.0"
  3.          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4.          xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  5.     <parent>
  6.         <groupId>org.springframework.boot</groupId>
  7.         <artifactId>spring-boot-starter-parent</artifactId>
  8.         <version>2.5.3</version>
  9.         <relativePath/> <!-- lookup parent from repository -->
  10.     </parent>
  11.
  12.     <modelVersion>4.0.0</modelVersion>
  13.     <groupId>tech.pdai</groupId>
  14.     <artifactId>423-springboot-demo-schedule-quartz-cluster</artifactId>
  15.     <version>1.0-SNAPSHOT</version>
  16.
  17.     <properties>
  18.         <maven.compiler.source>8</maven.compiler.source>
  19.         <maven.compiler.target>8</maven.compiler.target>
  20.     </properties>
  21.
  22.     <dependencies>
  23.         <dependency>
  24.             <groupId>org.springframework.boot</groupId>
  25.             <artifactId>spring-boot-starter-quartz</artifactId>
  26.         </dependency>
  27.         <dependency>
  28.             <groupId>org.springframework.boot</groupId>
  29.             <artifactId>spring-boot-starter-web</artifactId>
  30.         </dependency>
  31.         <dependency>
  32.             <groupId>org.springframework.boot</groupId>
  33.             <artifactId>spring-boot-starter-data-jpa</artifactId>
  34.         </dependency>
  35.         <dependency>
  36.             <groupId>mysql</groupId>
  37.             <artifactId>mysql-connector-java</artifactId>
  38.             <version>5.1.42</version><!--$NO-MVN-MAN-VER$-->
  39.             <scope>runtime</scope>
  40.         </dependency>
  41.         <dependency>
  42.             <groupId>org.springframework.boot</groupId>
  43.             <artifactId>spring-boot-starter-test</artifactId>
  44.             <scope>test</scope>
  45.         </dependency>
  46.
  47.         <dependency>
  48.             <groupId>org.projectlombok</groupId>
  49.             <artifactId>lombok</artifactId>
  50.             <version>1.18.20</version>
  51.             <optional>true</optional>
  52.         </dependency>
  53.
  54.         <dependency>
  55.             <groupId>com.github.pagehelper</groupId>
  56.             <artifactId>pagehelper</artifactId>
  57.             <version>5.0.0</version>
  58.         </dependency>
  59.     </dependencies>
  60.
  61. </project>

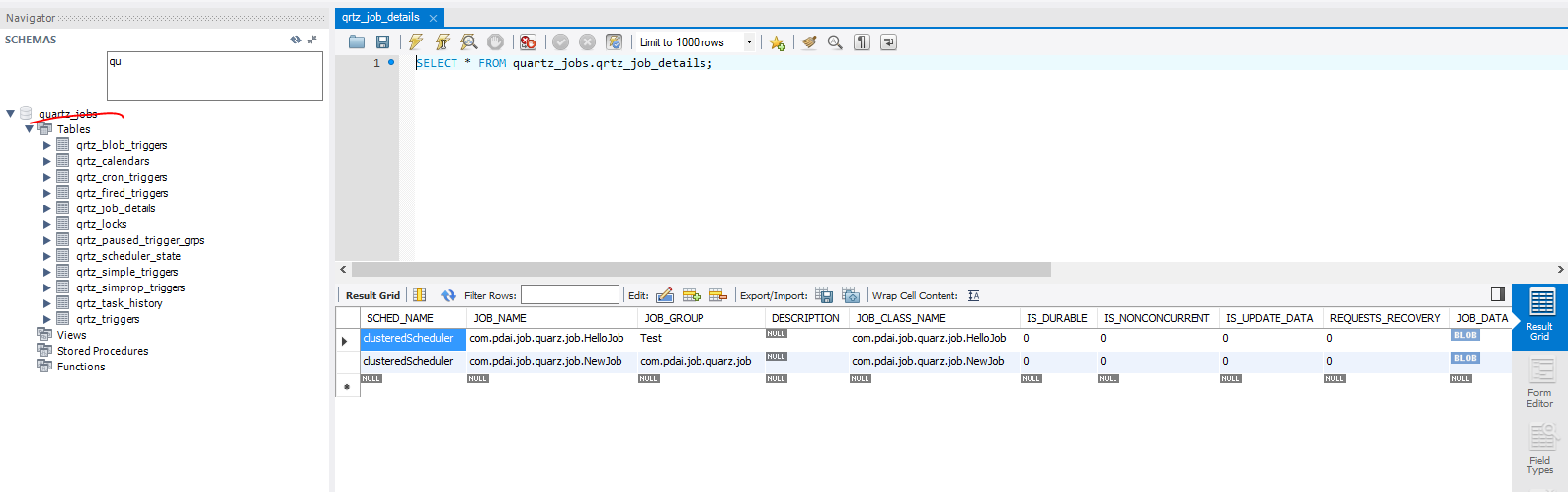

创建Schema

需要提前在MySQL中创建schema: quartz_jobs

  1. # DROP TABLE IF EXISTS QRTZ_FIRED_TRIGGERS;
  2. # DROP TABLE IF EXISTS QRTZ_PAUSED_TRIGGER_GRPS;
  3. # DROP TABLE IF EXISTS QRTZ_SCHEDULER_STATE;
  4. # DROP TABLE IF EXISTS QRTZ_LOCKS;
  5. # DROP TABLE IF EXISTS QRTZ_SIMPLE_TRIGGERS;
  6. # DROP TABLE IF EXISTS QRTZ_SIMPROP_TRIGGERS;
  7. # DROP TABLE IF EXISTS QRTZ_CRON_TRIGGERS;
  8. # DROP TABLE IF EXISTS QRTZ_BLOB_TRIGGERS;
  9. # DROP TABLE IF EXISTS QRTZ_TRIGGERS;
  10. # DROP TABLE IF EXISTS QRTZ_JOB_DETAILS;
  11. # DROP TABLE IF EXISTS QRTZ_CALENDARS;
  12. # DROP TABLE IF EXISTS QRTZ_TASK_HISTORY;
  13.
  14. CREATE TABLE QRTZ_JOB_DETAILS(
  15.   SCHED_NAME VARCHAR(120) NOT NULL,
  16.   JOB_NAME VARCHAR(200) NOT NULL,
  17.   JOB_GROUP VARCHAR(200) NOT NULL,
  18.   DESCRIPTION VARCHAR(250) NULL,
  19.   JOB_CLASS_NAME VARCHAR(250) NOT NULL,
  20.   IS_DURABLE VARCHAR(1) NOT NULL,
  21.   IS_NONCONCURRENT VARCHAR(1) NOT NULL,
  22.   IS_UPDATE_DATA VARCHAR(1) NOT NULL,
  23.   REQUESTS_RECOVERY VARCHAR(1) NOT NULL,
  24.   JOB_DATA BLOB NULL,
  25.   PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP))
  26.   ENGINE=InnoDB;
  27.
  28. CREATE TABLE QRTZ_TRIGGERS (
  29.   SCHED_NAME VARCHAR(120) NOT NULL,
  30.   TRIGGER_NAME VARCHAR(200) NOT NULL,
  31.   TRIGGER_GROUP VARCHAR(200) NOT NULL,
  32.   JOB_NAME VARCHAR(200) NOT NULL,
  33.   JOB_GROUP VARCHAR(200) NOT NULL,
  34.   DESCRIPTION VARCHAR(250) NULL,
  35.   NEXT_FIRE_TIME BIGINT(13) NULL,
  36.   PREV_FIRE_TIME BIGINT(13) NULL,
  37.   PRIORITY INTEGER NULL,
  38.   TRIGGER_STATE VARCHAR(16) NOT NULL,
  39.   TRIGGER_TYPE VARCHAR(8) NOT NULL,
  40.   START_TIME BIGINT(13) NOT NULL,
  41.   END_TIME BIGINT(13) NULL,
  42.   CALENDAR_NAME VARCHAR(200) NULL,
  43.   MISFIRE_INSTR SMALLINT(2) NULL,
  44.   JOB_DATA BLOB NULL,
  45.   PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  46.   FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
  47.   REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP))
  48.   ENGINE=InnoDB;
  49.
  50. CREATE TABLE QRTZ_SIMPLE_TRIGGERS (
  51.   SCHED_NAME VARCHAR(120) NOT NULL,
  52.   TRIGGER_NAME VARCHAR(200) NOT NULL,
  53.   TRIGGER_GROUP VARCHAR(200) NOT NULL,
  54.   REPEAT_COUNT BIGINT(7) NOT NULL,
  55.   REPEAT_INTERVAL BIGINT(12) NOT NULL,
  56.   TIMES_TRIGGERED BIGINT(10) NOT NULL,
  57.   PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  58.   FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
  59.   REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
  60.   ENGINE=InnoDB;
  61.
  62. CREATE TABLE QRTZ_CRON_TRIGGERS (
  63.   SCHED_NAME VARCHAR(120) NOT NULL,
  64.   TRIGGER_NAME VARCHAR(200) NOT NULL,
  65.   TRIGGER_GROUP VARCHAR(200) NOT NULL,
  66.   CRON_EXPRESSION VARCHAR(120) NOT NULL,
  67.   TIME_ZONE_ID VARCHAR(80),
  68.   PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  69.   FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
  70.   REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
  71.   ENGINE=InnoDB;
  72.
  73. CREATE TABLE QRTZ_SIMPROP_TRIGGERS
  74. (
  75.   SCHED_NAME VARCHAR(120) NOT NULL,
  76.   TRIGGER_NAME VARCHAR(200) NOT NULL,
  77.   TRIGGER_GROUP VARCHAR(200) NOT NULL,
  78.   STR_PROP_1 VARCHAR(512) NULL,
  79.   STR_PROP_2 VARCHAR(512) NULL,
  80.   STR_PROP_3 VARCHAR(512) NULL,
  81.   INT_PROP_1 INT NULL,
  82.   INT_PROP_2 INT NULL,
  83.   LONG_PROP_1 BIGINT NULL,
  84.   LONG_PROP_2 BIGINT NULL,
  85.   DEC_PROP_1 NUMERIC(13,4) NULL,
  86.   DEC_PROP_2 NUMERIC(13,4) NULL,
  87.   BOOL_PROP_1 VARCHAR(1) NULL,
  88.   BOOL_PROP_2 VARCHAR(1) NULL,
  89.   PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  90.   FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
  91.   REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
  92.   ENGINE=InnoDB;
  93.
  94. CREATE TABLE QRTZ_BLOB_TRIGGERS (
  95.   SCHED_NAME VARCHAR(120) NOT NULL,
  96.   TRIGGER_NAME VARCHAR(200) NOT NULL,
  97.   TRIGGER_GROUP VARCHAR(200) NOT NULL,
  98.   BLOB_DATA BLOB NULL,
  99.   PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  100.   INDEX (SCHED_NAME,TRIGGER_NAME, TRIGGER_GROUP),
  101.   FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
  102.   REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
  103.   ENGINE=InnoDB;
  104.
  105. CREATE TABLE QRTZ_CALENDARS (
  106.   SCHED_NAME VARCHAR(120) NOT NULL,
  107.   CALENDAR_NAME VARCHAR(200) NOT NULL,
  108.   CALENDAR BLOB NOT NULL,
  109.   PRIMARY KEY (SCHED_NAME,CALENDAR_NAME))
  110.   ENGINE=InnoDB;
  111.
  112. CREATE TABLE QRTZ_PAUSED_TRIGGER_GRPS (
  113.   SCHED_NAME VARCHAR(120) NOT NULL,
  114.   TRIGGER_GROUP VARCHAR(200) NOT NULL,
  115.   PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP))
  116.   ENGINE=InnoDB;
  117.
  118. CREATE TABLE QRTZ_FIRED_TRIGGERS (
  119.   SCHED_NAME VARCHAR(120) NOT NULL,
  120.   ENTRY_ID VARCHAR(95) NOT NULL,
  121.   TRIGGER_NAME VARCHAR(200) NOT NULL,
  122.   TRIGGER_GROUP VARCHAR(200) NOT NULL,
  123.   INSTANCE_NAME VARCHAR(200) NOT NULL,
  124.   FIRED_TIME BIGINT(13) NOT NULL,
  125.   SCHED_TIME BIGINT(13) NOT NULL,
  126.   PRIORITY INTEGER NOT NULL,
  127.   STATE VARCHAR(16) NOT NULL,
  128.   JOB_NAME VARCHAR(200) NULL,
  129.   JOB_GROUP VARCHAR(200) NULL,
  130.   IS_NONCONCURRENT VARCHAR(1) NULL,
  131.   REQUESTS_RECOVERY VARCHAR(1) NULL,
  132.   PRIMARY KEY (SCHED_NAME,ENTRY_ID))
  133.   ENGINE=InnoDB;
  134.
  135. CREATE TABLE QRTZ_SCHEDULER_STATE (
  136.   SCHED_NAME VARCHAR(120) NOT NULL,
  137.   INSTANCE_NAME VARCHAR(200) NOT NULL,
  138.   LAST_CHECKIN_TIME BIGINT(13) NOT NULL,
  139.   CHECKIN_INTERVAL BIGINT(13) NOT NULL,
  140.   PRIMARY KEY (SCHED_NAME,INSTANCE_NAME))
  141.   ENGINE=InnoDB;
  142.
  143. CREATE TABLE QRTZ_LOCKS (
  144.   SCHED_NAME VARCHAR(120) NOT NULL,
  145.   LOCK_NAME VARCHAR(40) NOT NULL,
  146.   PRIMARY KEY (SCHED_NAME,LOCK_NAME))
  147.   ENGINE=InnoDB;
  148.
  149. CREATE TABLE QRTZ_TASK_HISTORY (
  150.   SCHED_NAME VARCHAR(120) NOT NULL,
  151.   INSTANCE_ID VARCHAR(200) NOT NULL,
  152.   FIRE_ID VARCHAR(95) NOT NULL,
  153.   TASK_NAME VARCHAR(200) NULL,
  154.   TASK_GROUP VARCHAR(200) NULL,
  155.   FIRED_TIME BIGINT(13) NULL,
  156.   FIRED_WAY VARCHAR(8) NULL,
  157.   COMPLETE_TIME BIGINT(13) NULL,
  158.   EXPEND_TIME BIGINT(13) NULL,
  159.   REFIRED INT NULL,
  160.   EXEC_STATE VARCHAR(10) NULL,
  161.   LOG TEXT NULL,
  162.   PRIMARY KEY (FIRE_ID)
  163. )ENGINE=InnoDB;
  164.
  165. CREATE INDEX IDX_QRTZ_J_REQ_RECOVERY ON QRTZ_JOB_DETAILS(SCHED_NAME,REQUESTS_RECOVERY);
  166. CREATE INDEX IDX_QRTZ_J_GRP ON QRTZ_JOB_DETAILS(SCHED_NAME,JOB_GROUP);
  167.
  168. CREATE INDEX IDX_QRTZ_T_J ON QRTZ_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
  169. CREATE INDEX IDX_QRTZ_T_JG ON QRTZ_TRIGGERS(SCHED_NAME,JOB_GROUP);
  170. CREATE INDEX IDX_QRTZ_T_C ON QRTZ_TRIGGERS(SCHED_NAME,CALENDAR_NAME);
  171. CREATE INDEX IDX_QRTZ_T_G ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);
  172. CREATE INDEX IDX_QRTZ_T_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE);
  173. CREATE INDEX IDX_QRTZ_T_N_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE);
  174. CREATE INDEX IDX_QRTZ_T_N_G_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE);
  175. CREATE INDEX IDX_QRTZ_T_NEXT_FIRE_TIME ON QRTZ_TRIGGERS(SCHED_NAME,NEXT_FIRE_TIME);
  176. CREATE INDEX IDX_QRTZ_T_NFT_ST ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME);
  177. CREATE INDEX IDX_QRTZ_T_NFT_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME);
  178. CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE);
  179. CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE_GRP ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE);
  180.
  181. CREATE INDEX IDX_QRTZ_FT_TRIG_INST_NAME ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME);
  182. CREATE INDEX IDX_QRTZ_FT_INST_JOB_REQ_RCVRY ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY);
  183. CREATE INDEX IDX_QRTZ_FT_J_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
  184. CREATE INDEX IDX_QRTZ_FT_JG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_GROUP);
  185. CREATE INDEX IDX_QRTZ_FT_T_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP);
  186. CREATE INDEX IDX_QRTZ_FT_TG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);
  187.
  188. CREATE INDEX IDX_QRTZ_TK_S ON QRTZ_TASK_HISTORY(SCHED_NAME);
  189.
  190. commit;

application.yml

  1. spring:
  2.   datasource:
  3.     url: jdbc:mysql://localhost:3306/quartz_jobs?useUnicode=true&useSSL=false
  4.     username: root
  5.     password: xxxxxxxx
  6.     driver-class-name: com.mysql.jdbc.Driver
  7.   quartz:
  8.     #相关属性配置
  9.     properties:
  10.       org:
  11.         quartz:
  12.           scheduler:
  13.             instanceName: clusteredScheduler
  14.             instanceId: AUTO
  15.           jobStore:
  16.             class: org.quartz.impl.jdbcjobstore.JobStoreTX
  17.             driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate
  18.             tablePrefix: QRTZ_
  19.             isClustered: true
  20.             clusterCheckinInterval: 10000
  21.             useProperties: false
  22.           threadPool:
  23.             class: org.quartz.simpl.SimpleThreadPool
  24.             threadCount: 10
  25.             threadPriority: 5
  26.             threadsInheritContextClassLoaderOfInitializingThread: true
  27.     #数据库方式
  28.     job-store-type: jdbc

定义JobDetails实体

  1. /**
  2.  * @author pdai
  3.  *
  4.  */
  5. @Data
  6. public class JobDetails{
  7. 	private String cronExpression;
  8. 	private String jobClassName;
  9. 	private String triggerGroupName;
  10. 	private String triggerName;
  11. 	private String jobGroupName;
  12. 	private String jobName;
  13. 	private Date nextFireTime;
  14. 	private Date previousFireTime;
  15. 	private Date startTime;
  16. 	private String timeZone;
  17. 	private String status;
  18. }

Job管理类

  1. package tech.pdai.springboot.quartz.cluster.manager;
  2.
  3. import java.util.ArrayList;
  4. import java.util.HashMap;
  5. import java.util.List;
  6. import java.util.Map;
  7. import java.util.Set;
  8.
  9. import com.github.pagehelper.PageHelper;
  10. import com.github.pagehelper.PageInfo;
  11. import org.quartz.CronScheduleBuilder;
  12. import org.quartz.CronTrigger;
  13. import org.quartz.DateBuilder;
  14. import org.quartz.DateBuilder.IntervalUnit;
  15. import org.quartz.Job;
  16. import org.quartz.JobBuilder;
  17. import org.quartz.JobDetail;
  18. import org.quartz.JobExecutionContext;
  19. import org.quartz.JobKey;
  20. import org.quartz.Scheduler;
  21. import org.quartz.SchedulerException;
  22. import org.quartz.SimpleScheduleBuilder;
  23. import org.quartz.Trigger;
  24. import org.quartz.TriggerBuilder;
  25. import org.quartz.TriggerKey;
  26. import org.quartz.impl.matchers.GroupMatcher;
  27. import org.springframework.beans.factory.annotation.Autowired;
  28. import org.springframework.scheduling.quartz.QuartzJobBean;
  29. import org.springframework.stereotype.Component;
  30. import tech.pdai.springboot.quartz.cluster.entity.JobDetails;
  31.
  32. /**
  33.  * @author pdai
  34.  */
  35. @Component
  36. public class QuartzManager {
  37.
  38.     @Autowired
  39.     private Scheduler sched;
  40.
  41.     /**
  42.      * 创建or更新任务，存在则更新不存在创建
  43.      *
  44.      * @param jobClass     任务类
  45.      * @param jobName      任务名称
  46.      * @param jobGroupName 任务组名称
  47.      * @param jobCron      cron表达式
  48.      */
  49.     public void addOrUpdateJob(Class<? extends QuartzJobBean> jobClass, String jobName, String jobGroupName, String jobCron) {
  50.         try {
  51.             TriggerKey triggerKey = TriggerKey.triggerKey(jobName, jobGroupName);
  52.             CronTrigger trigger = (CronTrigger) sched.getTrigger(triggerKey);
  53.             if (trigger==null) {
  54.                 addJob(jobClass, jobName, jobGroupName, jobCron);
  55.             } else {
  56.                 if (trigger.getCronExpression().equals(jobCron)) {
  57.                     return;
  58.                 }
  59.                 updateJob(jobName, jobGroupName, jobCron);
  60.             }
  61.         } catch (SchedulerException e) {
  62.             e.printStackTrace();
  63.         }
  64.     }
  65.
  66.     /**
  67.      * 增加一个job
  68.      *
  69.      * @param jobClass     任务实现类
  70.      * @param jobName      任务名称
  71.      * @param jobGroupName 任务组名
  72.      * @param jobCron      cron表达式(如：0/5 * * * * ? )
  73.      */
  74.     public void addJob(Class<? extends QuartzJobBean> jobClass, String jobName, String jobGroupName, String jobCron) {
  75.         try {
  76.             JobDetail jobDetail = JobBuilder.newJob(jobClass).withIdentity(jobName, jobGroupName).build();
  77.             Trigger trigger = TriggerBuilder.newTrigger().withIdentity(jobName, jobGroupName)
  78.                     .startAt(DateBuilder.futureDate(1, IntervalUnit.SECOND))
  79.                     .withSchedule(CronScheduleBuilder.cronSchedule(jobCron)).startNow().build();
  80.
  81.             sched.scheduleJob(jobDetail, trigger);
  82.             if (!sched.isShutdown()) {
  83.                 sched.start();
  84.             }
  85.         } catch (SchedulerException e) {
  86.             e.printStackTrace();
  87.         }
  88.     }
  89.
  90.     /**
  91.      * @param jobClass
  92.      * @param jobName
  93.      * @param jobGroupName
  94.      * @param jobTime
  95.      */
  96.     public void addJob(Class<? extends Job> jobClass, String jobName, String jobGroupName, int jobTime) {
  97.         addJob(jobClass, jobName, jobGroupName, jobTime, -1);
  98.     }
  99.
  100.     public void addJob(Class<? extends Job> jobClass, String jobName, String jobGroupName, int jobTime, int jobTimes) {
  101.         try {
  102.             JobDetail jobDetail = JobBuilder.newJob(jobClass).withIdentity(jobName, jobGroupName)// 任务名称和组构成任务key
  103.                     .build();
  104.             // 使用simpleTrigger规则
  105.             Trigger trigger;
  106.             if (jobTimes < 0) {
  107.                 trigger = TriggerBuilder.newTrigger().withIdentity(jobName, jobGroupName)
  108.                         .withSchedule(SimpleScheduleBuilder.repeatSecondlyForever(1).withIntervalInSeconds(jobTime))
  109.                         .startNow().build();
  110.             } else {
  111.                 trigger = TriggerBuilder
  112.                         .newTrigger().withIdentity(jobName, jobGroupName).withSchedule(SimpleScheduleBuilder
  113.                                 .repeatSecondlyForever(1).withIntervalInSeconds(jobTime).withRepeatCount(jobTimes))
  114.                         .startNow().build();
  115.             }
  116.             sched.scheduleJob(jobDetail, trigger);
  117.             if (!sched.isShutdown()) {
  118.                 sched.start();
  119.             }
  120.         } catch (SchedulerException e) {
  121.             e.printStackTrace();
  122.         }
  123.     }
  124.
  125.     public void updateJob(String jobName, String jobGroupName, String jobTime) {
  126.         try {
  127.             TriggerKey triggerKey = TriggerKey.triggerKey(jobName, jobGroupName);
  128.             CronTrigger trigger = (CronTrigger) sched.getTrigger(triggerKey);
  129.             trigger = trigger.getTriggerBuilder().withIdentity(triggerKey)
  130.                     .withSchedule(CronScheduleBuilder.cronSchedule(jobTime)).build();
  131.             // 重启触发器
  132.             sched.rescheduleJob(triggerKey, trigger);
  133.         } catch (SchedulerException e) {
  134.             e.printStackTrace();
  135.         }
  136.     }
  137.
  138.     /**
  139.      * 删除任务一个job
  140.      *
  141.      * @param jobName      任务名称
  142.      * @param jobGroupName 任务组名
  143.      */
  144.     public void deleteJob(String jobName, String jobGroupName) {
  145.         try {
  146.             sched.pauseTrigger(TriggerKey.triggerKey(jobName, jobGroupName));
  147.             sched.unscheduleJob(TriggerKey.triggerKey(jobName, jobGroupName));
  148.             sched.deleteJob(new JobKey(jobName, jobGroupName));
  149.         } catch (Exception e) {
  150.             e.printStackTrace();
  151.         }
  152.     }
  153.
  154.     /**
  155.      * 暂停一个job
  156.      *
  157.      * @param jobName
  158.      * @param jobGroupName
  159.      */
  160.     public void pauseJob(String jobName, String jobGroupName) {
  161.         try {
  162.             JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);
  163.             sched.pauseJob(jobKey);
  164.         } catch (SchedulerException e) {
  165.             e.printStackTrace();
  166.         }
  167.     }
  168.
  169.     /**
  170.      * 恢复一个job
  171.      *
  172.      * @param jobName
  173.      * @param jobGroupName
  174.      */
  175.     public void resumeJob(String jobName, String jobGroupName) {
  176.         try {
  177.             JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);
  178.             sched.resumeJob(jobKey);
  179.         } catch (SchedulerException e) {
  180.             e.printStackTrace();
  181.         }
  182.     }
  183.
  184.     /**
  185.      * 立即执行一个job
  186.      *
  187.      * @param jobName
  188.      * @param jobGroupName
  189.      */
  190.     public void runAJobNow(String jobName, String jobGroupName) {
  191.         try {
  192.             JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);
  193.             sched.triggerJob(jobKey);
  194.         } catch (SchedulerException e) {
  195.             e.printStackTrace();
  196.         }
  197.     }
  198.
  199.     public PageInfo<JobDetails> queryAllJobBean(int pageNum, int pageSize) {
  200.         PageHelper.startPage(pageNum, pageSize);
  201.         List<JobDetails> jobList = null;
  202.         try {
  203.             GroupMatcher<JobKey> matcher = GroupMatcher.anyJobGroup();
  204.             Set<JobKey> jobKeys = sched.getJobKeys(matcher);
  205.             jobList = new ArrayList<>();
  206.             for (JobKey jobKey : jobKeys) {
  207.                 List<? extends Trigger> triggers = sched.getTriggersOfJob(jobKey);
  208.                 for (Trigger trigger : triggers) {
  209.                     JobDetails jobDetails = new JobDetails();
  210.                     if (trigger instanceof CronTrigger) {
  211.                         CronTrigger cronTrigger = (CronTrigger) trigger;
  212.                         jobDetails.setCronExpression(cronTrigger.getCronExpression());
  213.                         jobDetails.setTimeZone(cronTrigger.getTimeZone().getDisplayName());
  214.                     }
  215.                     jobDetails.setTriggerGroupName(trigger.getKey().getName());
  216.                     jobDetails.setTriggerName(trigger.getKey().getGroup());
  217.                     jobDetails.setJobGroupName(jobKey.getGroup());
  218.                     jobDetails.setJobName(jobKey.getName());
  219.                     jobDetails.setStartTime(trigger.getStartTime());
  220.                     jobDetails.setJobClassName(sched.getJobDetail(jobKey).getJobClass().getName());
  221.                     jobDetails.setNextFireTime(trigger.getNextFireTime());
  222.                     jobDetails.setPreviousFireTime(trigger.getPreviousFireTime());
  223.                     jobDetails.setStatus(sched.getTriggerState(trigger.getKey()).name());
  224.                     jobList.add(jobDetails);
  225.                 }
  226.             }
  227.         } catch (SchedulerException e) {
  228.             e.printStackTrace();
  229.         }
  230.         return new PageInfo<>(jobList);
  231.     }
  232.
  233.     /**
  234.      * 获取所有计划中的任务列表
  235.      *
  236.      * @return
  237.      */
  238.     public List<Map<String, Object>> queryAllJob() {
  239.         List<Map<String, Object>> jobList = null;
  240.         try {
  241.             GroupMatcher<JobKey> matcher = GroupMatcher.anyJobGroup();
  242.             Set<JobKey> jobKeys = sched.getJobKeys(matcher);
  243.             jobList = new ArrayList<>();
  244.             for (JobKey jobKey : jobKeys) {
  245.                 List<? extends Trigger> triggers = sched.getTriggersOfJob(jobKey);
  246.                 for (Trigger trigger : triggers) {
  247.                     Map<String, Object> map = new HashMap<>();
  248.                     map.put("jobName", jobKey.getName());
  249.                     map.put("jobGroupName", jobKey.getGroup());
  250.                     map.put("description", "trigger:" + trigger.getKey());
  251.                     Trigger.TriggerState triggerState = sched.getTriggerState(trigger.getKey());
  252.                     map.put("jobStatus", triggerState.name());
  253.                     if (trigger instanceof CronTrigger) {
  254.                         CronTrigger cronTrigger = (CronTrigger) trigger;
  255.                         String cronExpression = cronTrigger.getCronExpression();
  256.                         map.put("jobTime", cronExpression);
  257.                     }
  258.                     jobList.add(map);
  259.                 }
  260.             }
  261.         } catch (SchedulerException e) {
  262.             e.printStackTrace();
  263.         }
  264.         return jobList;
  265.     }
  266.
  267.     /**
  268.      * 获取所有正在运行的job
  269.      *
  270.      * @return
  271.      */
  272.     public List<Map<String, Object>> queryRunJon() {
  273.         List<Map<String, Object>> jobList = null;
  274.         try {
  275.             List<JobExecutionContext> executingJobs = sched.getCurrentlyExecutingJobs();
  276.             jobList = new ArrayList<>(executingJobs.size());
  277.             for (JobExecutionContext executingJob : executingJobs) {
  278.                 Map<String, Object> map = new HashMap<>();
  279.                 JobDetail jobDetail = executingJob.getJobDetail();
  280.                 JobKey jobKey = jobDetail.getKey();
  281.                 Trigger trigger = executingJob.getTrigger();
  282.                 map.put("jobName", jobKey.getName());
  283.                 map.put("jobGroupName", jobKey.getGroup());
  284.                 map.put("description", "trigger:" + trigger.getKey());
  285.                 Trigger.TriggerState triggerState = sched.getTriggerState(trigger.getKey());
  286.                 map.put("jobStatus", triggerState.name());
  287.                 if (trigger instanceof CronTrigger) {
  288.                     CronTrigger cronTrigger = (CronTrigger) trigger;
  289.                     String cronExpression = cronTrigger.getCronExpression();
  290.                     map.put("jobTime", cronExpression);
  291.                 }
  292.                 jobList.add(map);
  293.             }
  294.         } catch (SchedulerException e) {
  295.             e.printStackTrace();
  296.         }
  297.         return jobList;
  298.     }
  299. }

Job控制器接口

  1. package tech.pdai.springboot.quartz.cluster.controller;
  2.
  3. import java.util.HashMap;
  4. import java.util.Map;
  5.
  6. import com.github.pagehelper.PageInfo;
  7. import org.springframework.beans.factory.annotation.Autowired;
  8. import org.springframework.scheduling.quartz.QuartzJobBean;
  9. import org.springframework.web.bind.annotation.GetMapping;
  10. import org.springframework.web.bind.annotation.PostMapping;
  11. import org.springframework.web.bind.annotation.RequestMapping;
  12. import org.springframework.web.bind.annotation.RequestParam;
  13. import org.springframework.web.bind.annotation.RestController;
  14. import tech.pdai.springboot.quartz.cluster.entity.JobDetails;
  15. import tech.pdai.springboot.quartz.cluster.manager.QuartzManager;
  16.
  17.
  18. /**
  19.  * @author pdai
  20.  */
  21. @RestController
  22. @RequestMapping(value = "/job")
  23. public class JobController {
  24.
  25.     @Autowired
  26.     private QuartzManager qtzManager;
  27.
  28.     @SuppressWarnings("unchecked")
  29.     private static Class<? extends QuartzJobBean> getClass(String classname) throws Exception {
  30.         Class<?> class1 = Class.forName(classname);
  31.         return (Class<? extends QuartzJobBean>) class1;
  32.     }
  33.
  34.     /**
  35.      * @param jobClassName
  36.      * @param jobGroupName
  37.      * @param cronExpression
  38.      * @throws Exception
  39.      */
  40.     @PostMapping(value = "/addjob")
  41.     public void addjob(@RequestParam(value = "jobClassName") String jobClassName,
  42.                        @RequestParam(value = "jobGroupName") String jobGroupName,
  43.                        @RequestParam(value = "cronExpression") String cronExpression) throws Exception {
  44.         qtzManager.addOrUpdateJob(getClass(jobClassName), jobClassName, jobGroupName, cronExpression);
  45.     }
  46.
  47.     /**
  48.      * @param jobClassName
  49.      * @param jobGroupName
  50.      * @throws Exception
  51.      */
  52.     @PostMapping(value = "/pausejob")
  53.     public void pausejob(@RequestParam(value = "jobClassName") String jobClassName,
  54.                          @RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {
  55.         qtzManager.pauseJob(jobClassName, jobGroupName);
  56.     }
  57.
  58.     /**
  59.      * @param jobClassName
  60.      * @param jobGroupName
  61.      * @throws Exception
  62.      */
  63.     @PostMapping(value = "/resumejob")
  64.     public void resumejob(@RequestParam(value = "jobClassName") String jobClassName,
  65.                           @RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {
  66.         qtzManager.resumeJob(jobClassName, jobGroupName);
  67.     }
  68.
  69.     /**
  70.      * @param jobClassName
  71.      * @param jobGroupName
  72.      * @param cronExpression
  73.      * @throws Exception
  74.      */
  75.     @PostMapping(value = "/reschedulejob")
  76.     public void rescheduleJob(@RequestParam(value = "jobClassName") String jobClassName,
  77.                               @RequestParam(value = "jobGroupName") String jobGroupName,
  78.                               @RequestParam(value = "cronExpression") String cronExpression) throws Exception {
  79.         qtzManager.addOrUpdateJob(getClass(jobClassName), jobClassName, jobGroupName, cronExpression);
  80.     }
  81.
  82.     /**
  83.      * @param jobClassName
  84.      * @param jobGroupName
  85.      * @throws Exception
  86.      */
  87.     @PostMapping(value = "/deletejob")
  88.     public void deletejob(@RequestParam(value = "jobClassName") String jobClassName,
  89.                           @RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {
  90.         qtzManager.deleteJob(jobClassName, jobGroupName);
  91.     }
  92.
  93.     /**
  94.      * @param pageNum
  95.      * @param pageSize
  96.      * @return
  97.      */
  98.     @GetMapping(value = "/queryjob")
  99.     public Map<String, Object> queryjob(@RequestParam(value = "pageNum") Integer pageNum,
  100.                                         @RequestParam(value = "pageSize") Integer pageSize) {
  101.         PageInfo<JobDetails> jobAndTrigger = qtzManager.queryAllJobBean(pageNum, pageSize);
  102.         Map<String, Object> map = new HashMap<String, Object>();
  103.         map.put("JobAndTrigger", jobAndTrigger);
  104.         map.put("number", jobAndTrigger.getTotal());
  105.         return map;
  106.     }
  107. }

定义具体的Job

  1. package tech.pdai.springboot.quartz.cluster.job;
  2.
  3. import java.util.Date;
  4.
  5. import lombok.extern.slf4j.Slf4j;
  6. import org.quartz.JobExecutionContext;
  7. import org.quartz.JobExecutionException;
  8. import org.springframework.scheduling.quartz.QuartzJobBean;
  9.
  10. @Slf4j
  11. public class HelloJob extends QuartzJobBean {
  12.
  13.     @Override
  14.     protected void executeInternal(JobExecutionContext context) throws JobExecutionException {
  15.         // get parameters
  16.         context.getJobDetail().getJobDataMap().forEach(
  17.                 (k, v) -> log.info("param, key:{}, value:{}", k, v)
  18.         );
  19.         // your logics
  20.         log.info("Hello Job执行时间: " + new Date());
  21.     }
  22. }

前端实现

简单用VueJS 写个页面测试

  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4. <meta charset="UTF-8">
  5. 	<title>QuartzDemo</title>
  6. 	<link rel="stylesheet" href="https://unpkg.com/element-ui@2.0.5/lib/theme-chalk/index.css" rel="external nofollow" >
  7. 	<script src="https://unpkg.com/vue/dist/vue.js"></script>
  8. 	<script src="http://cdn.bootcss.com/vue-resource/1.3.4/vue-resource.js"></script>
  9. 	<script src="https://unpkg.com/element-ui@2.0.5/lib/index.js"></script>
  10.
  11. 	<style>
  12.       #top {
  13. 	      background:#20A0FF;
  14. 	      padding:5px;
  15. 	      overflow:hidden
  16.       }
  17. 	</style>
  18.
  19. </head>
  20. <body>
  21.     <div id="test">
  22.
  23. 		<div id="top">
  24. 				<el-button type="text" @click="search" style="color:white">查询</el-button>
  25. 				<el-button type="text" @click="handleadd" style="color:white">添加</el-button>
  26. 			</span>
  27. 		</div>
  28.
  29. 		<br/>
  30.
  31.         <div style="margin-top:15px">
  32.
  33. 		  <el-table
  34. 		    ref="testTable"
  35. 		    :data="tableData"
  36. 		    style="width:100%"
  37. 		    border
  38. 		    >
  39. 		    <el-table-column
  40. 		      prop="status"
  41. 		      label="任务状态"
  42. 		      sortable
  43. 		      show-overflow-tooltip>
  44. 		    </el-table-column>
  45.
  46. 		    <el-table-column
  47. 		      prop="jobName"
  48. 		      label="任务名称"
  49. 		      sortable
  50. 		      show-overflow-tooltip>
  51. 		    </el-table-column>
  52.
  53. 		    <el-table-column
  54. 		      prop="jobGroupName"
  55. 		      label="任务所在组"
  56. 		      sortable>
  57. 		    </el-table-column>
  58.
  59.    		    <el-table-column
  60. 		      prop="jobClassName"
  61. 		      label="任务类名"
  62. 		      sortable>
  63. 		    </el-table-column>
  64.
  65.    		    <el-table-column
  66. 		      prop="triggerName"
  67. 		      label="触发器名称"
  68. 		      sortable>
  69. 		    </el-table-column>
  70.
  71. 		    <el-table-column
  72. 		      prop="triggerGroupName"
  73. 		      label="触发器所在组"
  74. 		      sortable>
  75. 		    </el-table-column>
  76.
  77. 		    <el-table-column
  78. 		      prop="cronExpression"
  79. 		      label="表达式"
  80. 		      sortable>
  81. 		    </el-table-column>
  82.
  83. 		    <el-table-column
  84. 		      prop="timeZone"
  85. 		      label="时区"
  86. 		      sortable>
  87. 		    </el-table-column>
  88.
  89. 	        <el-table-column label="操作" width="300">
  90. 		      <template scope="scope">
  91. 		      	<el-button
  92. 		          size="small"
  93. 		          type="warning"
  94. 		          @click="handlePause(scope.$index, scope.row)">暂停</el-button>
  95.
  96. 		        <el-button
  97. 		          size="small"
  98. 		          type="info"
  99. 		          @click="handleResume(scope.$index, scope.row)">恢复</el-button>
  100.
  101. 		        <el-button
  102. 		          size="small"
  103. 		          type="danger"
  104. 		          @click="handleDelete(scope.$index, scope.row)">删除</el-button>
  105.
  106. 		        <el-button
  107. 		          size="small"
  108. 		          type="success"
  109. 		          @click="handleUpdate(scope.$index, scope.row)">修改</el-button>
  110. 		      </template>
  111. 		    </el-table-column>
  112. 		  </el-table>
  113.
  114. 		  <div align="center">
  115. 			  <el-pagination
  116. 			      @size-change="handleSizeChange"
  117. 			      @current-change="handleCurrentChange"
  118. 			      :current-page="currentPage"
  119. 			      :page-sizes="[10, 20, 30, 40]"
  120. 			      :page-size="pagesize"
  121. 			      layout="total, sizes, prev, pager, next, jumper"
  122. 			      :total="totalCount">
  123. 			  </el-pagination>
  124. 		  </div>
  125. 		</div>
  126.
  127. 		<el-dialog title="添加任务" :visible.sync="dialogFormVisible">
  128. 		  <el-form :model="form">
  129. 		    <el-form-item label="任务名称" label-width="120px" style="width:35%">
  130. 		      <el-input v-model="form.jobName" auto-complete="off"></el-input>
  131. 		    </el-form-item>
  132. 		    <el-form-item label="任务分组" label-width="120px" style="width:35%">
  133. 		      <el-input v-model="form.jobGroup" auto-complete="off"></el-input>
  134. 		    </el-form-item>
  135. 		    <el-form-item label="表达式" label-width="120px" style="width:35%">
  136. 		      <el-input v-model="form.cronExpression" auto-complete="off"></el-input>
  137. 		    </el-form-item>
  138. 		  </el-form>
  139. 		  <div slot="footer" class="dialog-footer">
  140. 		    <el-button @click="dialogFormVisible = false">取 消</el-button>
  141. 		    <el-button type="primary" @click="add">确 定</el-button>
  142. 		  </div>
  143. 		</el-dialog>
  144.
  145. 		<el-dialog title="修改任务" :visible.sync="updateFormVisible">
  146. 		  <el-form :model="updateform">
  147. 		    <el-form-item label="表达式" label-width="120px" style="width:35%">
  148. 		      <el-input v-model="updateform.cronExpression" auto-complete="off"></el-input>
  149. 		    </el-form-item>
  150. 		  </el-form>
  151. 		  <div slot="footer" class="dialog-footer">
  152. 		    <el-button @click="updateFormVisible = false">取 消</el-button>
  153. 		    <el-button type="primary" @click="update">确 定</el-button>
  154. 		  </div>
  155. 		</el-dialog>
  156.
  157.     </div>
  158.
  159.     <footer align="center">
  160.         <p>&copy; Quartz 任务管理</p>
  161.     </footer>
  162.
  163. 	<script>
  164. 	var vue = new Vue({
  165. 			el:"#test",
  166. 		    data: {
  167. 		    	//表格当前页数据
  168. 		    	tableData: [],
  169.
  170. 		        //请求的URL
  171. 		        url:'job/queryjob',
  172.
  173. 		        //默认每页数据量
  174. 		        pagesize: 10,
  175.
  176. 		        //当前页码
  177. 		        currentPage: 1,
  178.
  179. 		        //查询的页码
  180. 		        start: 1,
  181.
  182. 		        //默认数据总数
  183. 		        totalCount: 1000,
  184.
  185. 		        //添加对话框默认可见性
  186. 		        dialogFormVisible: false,
  187.
  188. 		        //修改对话框默认可见性
  189. 		        updateFormVisible: false,
  190.
  191. 		        //提交的表单
  192. 		        form: {
  193. 		        	jobName: '',
  194. 		        	jobGroup: '',
  195. 		        	cronExpression: '',
  196. 		          },
  197.
  198. 		        updateform: {
  199. 		        	jobName: '',
  200. 		        	jobGroup: '',
  201. 		        	cronExpression: '',
  202. 		        },
  203. 		    },
  204.
  205. 		    methods: {
  206.
  207. 		        //从服务器读取数据
  208. 				loadData: function(pageNum, pageSize){
  209. 					this.$http.get('job/queryjob?' + 'pageNum=' +  pageNum + '&pageSize=' + pageSize).then(function(res){
  210. 						console.log(res)
  211.                 		this.tableData = res.body.JobAndTrigger.list;
  212.                 		this.totalCount = res.body.number;
  213.                 	},function(){
  214.                   		console.log('failed');
  215.                 	});
  216. 				},
  217.
  218. 		        //单行删除
  219. 			    handleDelete: function(index, row) {
  220. 					this.$http.post('job/deletejob',{"jobClassName":row.jobName,"jobGroupName":row.jobGroupName},{emulateJSON: true}).then(function(res){
  221. 						this.loadData( this.currentPage, this.pagesize);
  222. 		            },function(){
  223. 		                console.log('failed');
  224. 		            });
  225. 		        },
  226.
  227. 		        //暂停任务
  228. 		        handlePause: function(index, row){
  229. 		        	this.$http.post('job/pausejob',{"jobClassName":row.jobName,"jobGroupName":row.jobGroupName},{emulateJSON: true}).then(function(res){
  230. 						this.loadData( this.currentPage, this.pagesize);
  231. 		            },function(){
  232. 		                console.log('failed');
  233. 		            });
  234. 		        },
  235.
  236. 		        //恢复任务
  237. 		        handleResume: function(index, row){
  238. 		        	this.$http.post('job/resumejob',{"jobClassName":row.jobName,"jobGroupName":row.jobGroupName},{emulateJSON: true}).then(function(res){
  239. 						this.loadData( this.currentPage, this.pagesize);
  240. 		            },function(){
  241. 		                console.log('failed');
  242. 		            });
  243. 		        },
  244.
  245. 		        //搜索
  246. 		        search: function(){
  247. 		        	this.loadData(this.currentPage, this.pagesize);
  248. 		        },
  249.
  250. 		        //弹出对话框
  251. 		        handleadd: function(){
  252. 		            this.dialogFormVisible = true;
  253. 		        },
  254.
  255. 		        //添加
  256. 		        add: function(){
  257. 		        	this.$http.post('job/addjob',{"jobClassName":this.form.jobName,"jobGroupName":this.form.jobGroup,"cronExpression":this.form.cronExpression},{emulateJSON: true}).then(function(res){
  258.         				this.loadData(this.currentPage, this.pagesize);
  259.         				this.dialogFormVisible = false;
  260.                     },function(){
  261.                         console.log('failed');
  262.                     });
  263. 		        },
  264.
  265. 		        //更新
  266. 		        handleUpdate: function(index, row){
  267. 		        	console.log(row)
  268. 		        	this.updateFormVisible = true;
  269. 		        	this.updateform.jobName = row.jobClassName;
  270. 		        	this.updateform.jobGroup = row.jobGroupName;
  271. 		        },
  272.
  273. 		        //更新任务
  274. 		        update: function(){
  275. 		        	this.$http.post
  276. 		        	('job/reschedulejob',
  277. 		        			{"jobClassName":this.updateform.jobName,
  278. 		        			 "jobGroupName":this.updateform.jobGroup,
  279. 		        			 "cronExpression":this.updateform.cronExpression
  280. 		        			 },{emulateJSON: true}
  281. 		        	).then(function(res){
  282. 		        		this.loadData(this.currentPage, this.pagesize);
  283.         				this.updateFormVisible = false;
  284. 		        	},function(){
  285.                         console.log('failed');
  286.                     });
  287.
  288. 		        },
  289.
  290. 		        //每页显示数据量变更
  291. 		        handleSizeChange: function(val) {
  292. 		            this.pagesize = val;
  293. 		            this.loadData(this.currentPage, this.pagesize);
  294. 		        },
  295.
  296. 		        //页码变更
  297. 		        handleCurrentChange: function(val) {
  298. 		            this.currentPage = val;
  299. 		            this.loadData(this.currentPage, this.pagesize);
  300. 		        },
  301.
  302. 		    },
  303.
  304.
  305. 		  });
  306.
  307. 		  //载入数据
  308.     	  vue.loadData(vue.currentPage, vue.pagesize);
  309. 	</script>
  310.
  311. </body>
  312. </html>

测试效果

(PS: 这里的任务名称需要改成你自己的完整类名称)

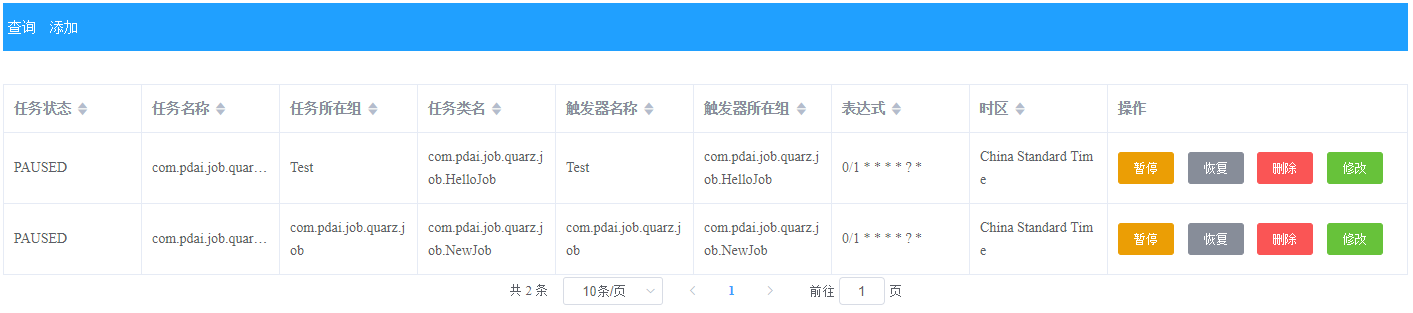

展示正在运行的Jobs:

增加新的Job:

Jobs持久化在数据库:

以上就是SpringBoot集成quartz实现定时任务详解的详细内容，更多关于SpringBoot quartz定时任务的资料请关注w3xue其它相关文章！

 友情链接：直通硅谷 　点职佳 　北美留学生论坛

Spring热门文章

  • 解决springboot+activemq启动报注解错误的问题
  • Springboot整合Rabbitmq之Confirm和Return机制
  • SpringBoot SpringEL表达式的使用
  • SpringBoot自动配置原理,你真的懂吗?(简单易懂)
  • Spring源码：Bean生命周期（终章）
  • Springboot-Management的项目实践
  • 解决springboot 启动找不到主类的问题
  • Spring5路径匹配器PathPattern解析
  • SpringAOP如何获取方法参数上的注解
  • java与es8实战之五：SpringBoot应用中操作es8(带安全检查：https、账号密码、API Key)

    • Spring推荐文章

  • SpringBoot Session共享，配置不生效问题排查 → 你竟然在代码里下毒！
  • 【Spring源码分析】Spring Scope功能中的动态代理 - Scoped Proxy
  • Spring AOP概念及原理
  • SpringBoot2.7还是任性的，就是不支持Logback1.3，你能奈他何
  • SpringBoot+ Sharding Sphere 轻松实现数据库字段加解密
  • Spring MVC 中视图的实现原理，在Spring MVC 中实现重定向和转发，以及访问静态资源 - Rainbow-Sea
  • Spring MVC 中 HttpMessageConverter 转换器 - Rainbow-Sea
  • SpringBoot+mail 轻松实现各类邮件自动推送
  • Spring MVC 获取三个域(request请求域，session 会话域，application 应用域)对象的方式 - Rainbow-Sea
  • SpringBoot3整合SpringDoc实现在线接口文档

    • 本站QQ群：前端 618073944 | Java 606181507 | Python 626812652 | C/C++ 612253063 | 微信 634508462 | 苹果 692586424 | C#/.net 182808419 | PHP 305140648 | 运维 608723728

    W3xue 的所有内容仅供测试，对任何法律问题及风险不承担任何责任。通过使用本站内容随之而来的风险与本站无关。
    关于我们  |  意见建议  |  捐助我们  |  报错有奖  |  广告合作、友情链接（目前9元/月）请联系QQ：27243702 沸活量
    皖ICP备17017327号-2　皖公网安备34020702000426号
