续 基于开源模型的实时人脸识别系统
进行人脸识别首要的任务就是要定位出画面中的人脸，这个任务就是人脸检测。人脸检测总体上算是目标检测的一个特殊情况，但也有自身的特点，比如角度多变，表情多变，可能存在各类遮挡。早期传统的方法有Haar Cascade、HOG等，基本做法就是特征描述子+滑窗+分类器，随着2012年Alexnet的出现，慢慢深度学习在这一领域开始崛起。算法和硬件性能的发展，也让基于深度学习的人脸识别不仅性能取得了很大的提升，速度也能达到实时，使得人脸技术真正进入了实用。
人脸检测大体上跟随目标检测技术的发展，不过也有些自己的方法，主要可以分为一下几类方法.

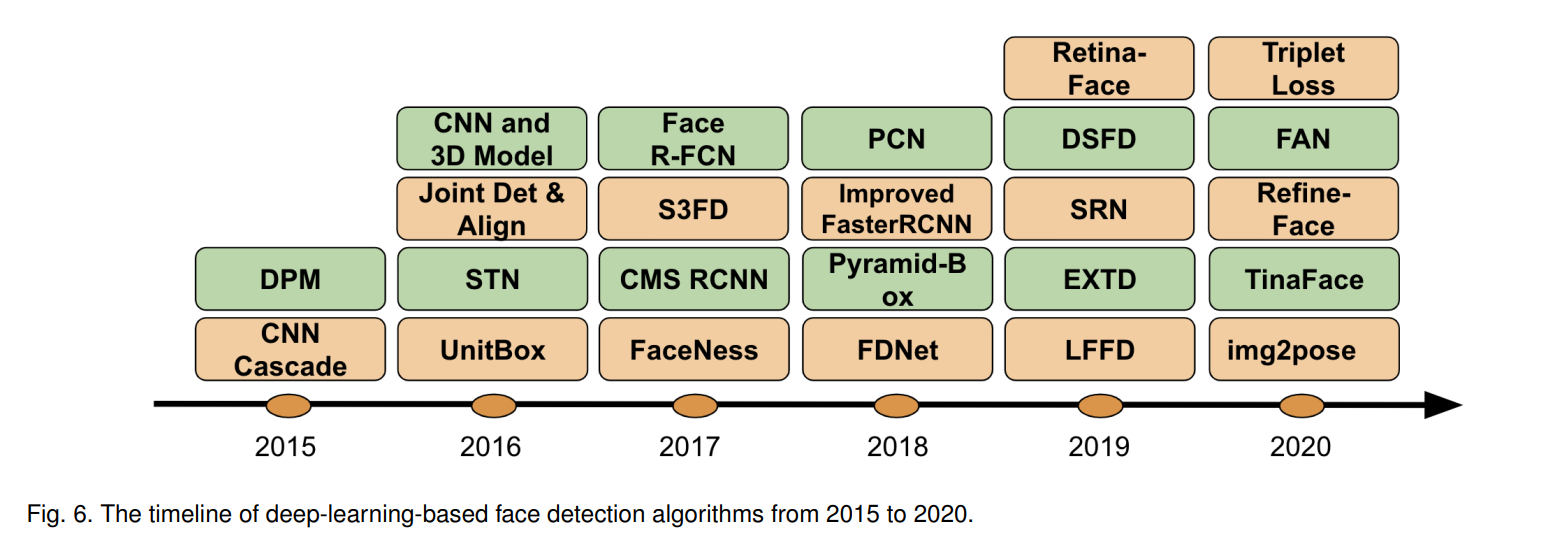

人脸检测算法概览
由于这个系列重点并不在于算法细节本身，因而对于一些算法只是提及，有兴趣可以自己精读。
Cascade-CNN Based Models
这类方法通过级联几个网络来逐步提高准确率，比较有代表性的是MTCNN方法。

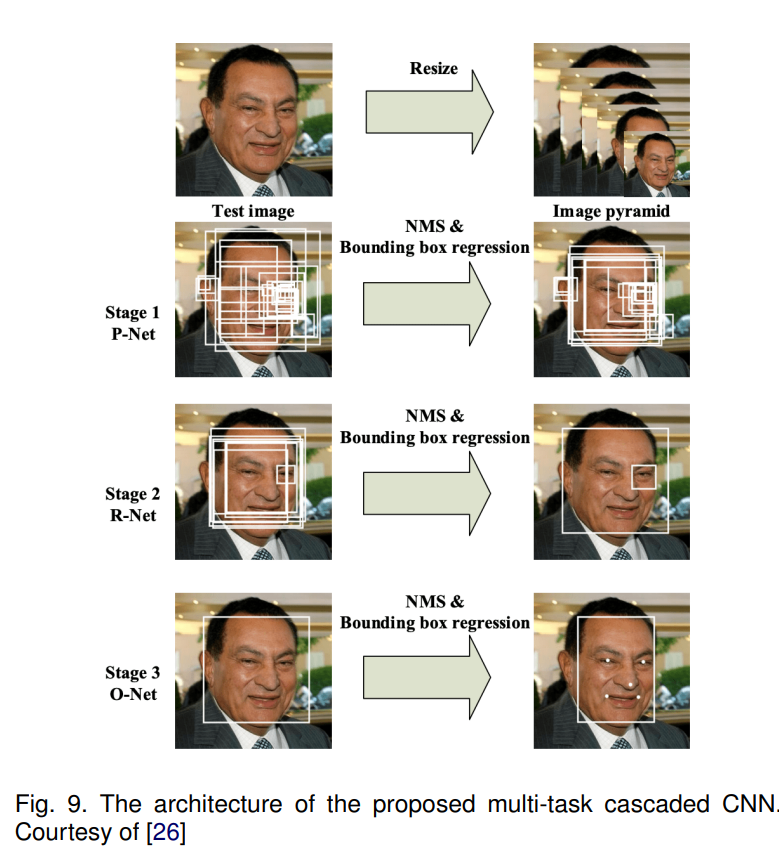

MTCNN通过级联PNet, RNet, ONet，层层过滤来提高整个检测的精度。这个方法更适合CPU，那个时期的嵌入式设备使用比较多。 由于有3个网络，训练起来比较麻烦。
R-CNN
这一块主要来源于目标检测中的RCNN, Fast RCNN, Faster RCNN
这类方法精度高，但速度相对较慢。
Single Shot Detection Models
SSD是目标检测领域比较有代表性的一个算法，与RCNN系列相比，它是one stage方法，速度比较快。基于它的用于人脸检测的代表性方法是SSH.

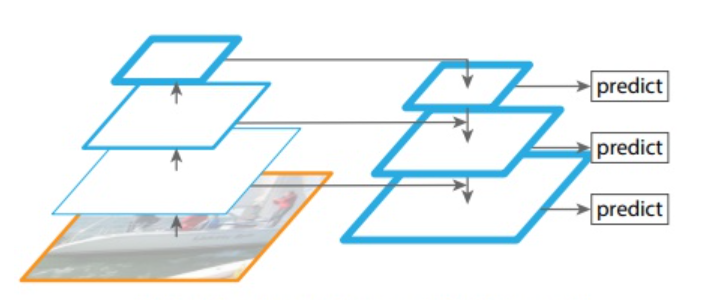

Feature Pyramid Network Based Models
YOLO系列
YOLO系列在目标检测领域比较成功，自然的也会用在人脸检测领域，比如tiny yolo face,yolov5face, yolov8face等，基本上每一代都会应用于人脸。
开源模型的选型
为了能够达到实时，同时也要有较好的效果，我们将目光锁定在yolo系列上，yolo在精度和速度的平衡上做的比较好，也比较易用。目前最新的是yolov8, 经过搜索，也已经有人将其用在人脸检测上了：derronqi/yolov8-face: yolov8 face detection with landmark (github.com)，
推理框架的选择
简单起见，我们选择onnxruntime，该框架既支持CPU也支持GPU, 基本满足了我们的开发要求。
yolov8-face的使用
为了减少重复工作，我们可以定义一个模型的基类, 对模型载入、推理的操作进行封装，这样就不需要每个模型都实现一遍了：
from easydict import EasyDict as edictimport onnxruntimeimport threadingclass BaseModel: def __init__(self, model_path, device='cpu', **kwargs) -> None: self.model = self.load_model(model_path, device) self.input_layer = self.model.get_inputs()[0].name self.output_layers = [output.name for output in self.model.get_outputs()] self.lock = threading.Lock() def load_model(self, model_path:str, device:str='cpu'): available_providers = onnxruntime.get_available_providers() if device == "gpu" and "CUDAExecutionProvider" not in available_providers: print("CUDAExecutionProvider is not available, use CPUExecutionProvider instead") device = "cpu" if device == 'cpu': self.model = onnxruntime.InferenceSession(model_path, providers=['CPUExecutionProvider']) else: self.model = onnxruntime.InferenceSession(model_path,providers=['CUDAExecutionProvider']) return self.model def inference(self, input): with self.lock: outputs = self.model.run(self.output_layers, {self.input_layer: input}) return outputs def preprocess(self, **kwargs): pass def postprocess(self, **kwargs): pass def run(self, **kwargs): pass
继承BaseModel, 实现模型的前处理和后处理：
class Yolov8Face(BaseModel): def __init__(self, model_path, device='cpu',**kwargs) -> None: super().__init__(model_path, device, **kwargs) self.conf_threshold = kwargs.get('conf_threshold', 0.5) self.iou_threshold = kwargs.get('iou_threshold', 0.4) self.input_size = kwargs.get('input_size', 640) self.input_width, self.input_height = self.input_size, self.input_size self.reg_max=16 self.project = np.arange(self.reg_max) self.strides=[8, 16, 32] self.feats_hw = [(math.ceil(self.input_height / self.strides[i]), math.ceil(self.input_width / self.strides[i])) for i in range(len(self.strides))] self.anchors = self.make_anchors(self.feats_hw) def make_anchors(self, feats_hw, grid_cell_offset=0.5): """Generate anchors from features.""" anchor_points = {} for i, stride in enumerate(self.strides): h,w = feats_hw[i] x = np.arange(0, w) + grid_cell_offset # shift x y = np.arange(0, h) + grid_cell_offset # shift y sx, sy = np.meshgrid(x, y) # sy, sx = np.meshgrid(y, x) anchor_points[stride] = np.stack((sx, sy), axis=-1).reshape(-1, 2) return anchor_points def preprocess(self, image, **kwargs): return resize_image(image, keep_ratio=True, dst_width=self.input_width, dst_height=self.input_height) def distance2bbox(self, points, distance, max_shape=None): x1 = points[:, 0] - distance[:, 0] y1 = points[:, 1] - distance[:, 1] x2 = points[:, 0] + distance[:, 2] y2 = points[:, 1] + distance[:, 3] if max_shape is not None: x1 = np.clip(x1, 0, max_shape[1]) y1 = np.clip(y1, 0, max_shape[0]) x2 = np.clip(x2, 0, max_shape[1]) y2 = np.clip(y2, 0, max_shape[0]) return np.stack([x1, y1, x2, y2], axis=-1) def postprocess(self, preds, scale_h, scale_w, top, left, **kwargs): bboxes, scores, landmarks = [], [], [] for i, pred in enumerate(preds): stride = int(self.input_height/pred.shape[2]) pred = pred.transpose((0, 2, 3, 1)) box = pred[..., :self.reg_max * 4] cls = 1 / (1 + np.exp(-pred[..., self.reg_max * 4:-15])).reshape((-1,1)) kpts = pred[..., -15:].reshape((-1,15)) ### x1,y1,score1, ..., x5,y5,score5 # tmp = box.reshape(self.feats_hw[i][0], self.feats_hw[i][1], 4, self.reg_max) tmp = box.reshape(-1, 4, self.reg_max) bbox_pred = softmax(tmp, axis=-1) bbox_pred = np.dot(bbox_pred, self.project).reshape((-1,4)) bbox = self.distance2bbox(self.anchors[stride], bbox_pred, max_shape=(self.input_height, self.input_width)) * stride kpts[:, 0::3] = (kpts[:, 0::3] * 2.0 + (self.anchors[stride][:, 0].reshape((-1,1)) - 0.5)) * stride kpts[:, 1::3] = (kpts[:, 1::3] * 2.0 + (self.anchors[stride][:, 1].reshape((-1,1)) - 0.5)) * stride kpts[:, 2::3] = 1 / (1+np.exp(-kpts[:, 2::3])) bbox -= np.array([[left, top, left, top]]) ###合理使用广播法则 bbox *= np.array([[scale_w, scale_h, scale_w, scale_h]]) kpts -= np.tile(np.array([left, top, 0]), 5).reshape((1,15)) kpts *= np.tile(np.array([scale_w, scale_h, 1]), 5).reshape((1,15)) bboxes.append(bbox) scores.append(cls) landmarks.append(kpts) bboxes = np.concatenate(bboxes, axis=0) scores = np.concatenate(scores, axis=0) landmarks = np.concatenate(landmarks, axis=0) bboxes_wh = bboxes.copy() bboxes_wh[:, 2:4] = bboxes[:, 2:4] - bboxes[:, 0:2] ####xywh classIds = np.argmax(scores, axis=1) confidences = np.max(scores, axis=1) ####max_class_confidence mask = confidences>self.conf_threshold bboxes_wh = bboxes_wh[mask] ###合理使用广播法则 confidences = confidences[mask] classIds = classIds[mask] landmarks = landmarks[mask] if len(bboxes_wh) == 0: return np.empty((0, 5)), np.empty((0, 5)) indices = cv2.dnn.NMSBoxes(bboxes_wh.tolist(), confidences.tolist(), self.conf_threshold, self.iou_threshold).flatten() if len(indices) > 0: mlvl_bboxes = bboxes_wh[indices] confidences = confidences[indices] classIds = classIds[indices] ## convert box to x1,y1,x2,y2 mlvl_bboxes[:, 2:4] = mlvl_bboxes[:, 2:4] + mlvl_bboxes[:, 0:2] # concat box, confidence, classId mlvl_bboxes = np.concatenate((mlvl_bboxes, confidences.reshape(-1, 1), classIds.reshape(-1, 1)), axis=1) landmarks = landmarks[indices] return mlvl_bboxes, landmarks.reshape(-1, 5, 3)[..., :2] else: return np.empty((0, 5)), np.empty((0, 5)) def run(self, image, **kwargs): img, newh, neww, top, left = self.preprocess(image) scale_h, scale_w = image.shape[0]/newh, image.shape[1]/neww # convert to RGB img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB) img = img.astype(np.float32) img = img / 255.0 img = np.transpose(img, (2, 0, 1)) img = np.expand_dims(img, axis=0) output = self.inference(img) bboxes, landmarks = self.postprocess(output, scale_h, scale_w, top, left) # limit box in image bboxes[:, 0] = np.clip(bboxes[:, 0], 0, image.shape[1]) bboxes[:, 1] = np.clip(bboxes[:, 1], 0, image.shape[0]) return bboxes, landmarks
测试
在Intel(R) Core(TM) i5-10210U上，yolov8-lite-t耗时50ms, 基本可以达到实时的需求。
参考文献：
ZOU, Zhengxia, et al. Object detection in 20 years: A survey. Proceedings of the IEEE, 2023.
MINAEE, Shervin, et al. Going deeper into face detection: A survey. arXiv preprint arXiv:2103.14983, 2021.
